Analog Devices
ADE7878ACPZ
Polyphase Multifunction Energy Metering IC with per Phase Active and Reactive Powers
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADE7878ACPZ technical specifications.
General
Contact Plating
Tin, Matte
Height
0.75mm
Input Impedance
400kR
Lead Free
Contains Lead
Length
6.1mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.7V
Min Supply Voltage
2.4V
Mount
Surface Mount
Operating Supply Current
20mA
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
6.1mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADE7878ACPZ Datasheet
Download the complete datasheet for Analog Devices ADE7878ACPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

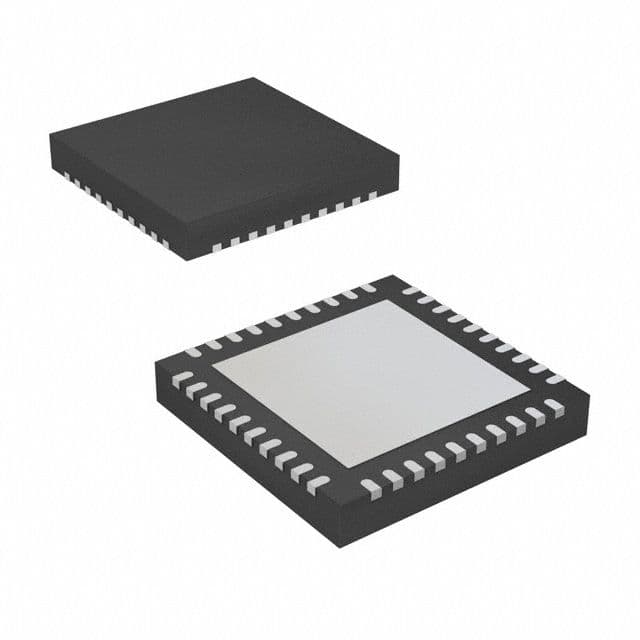

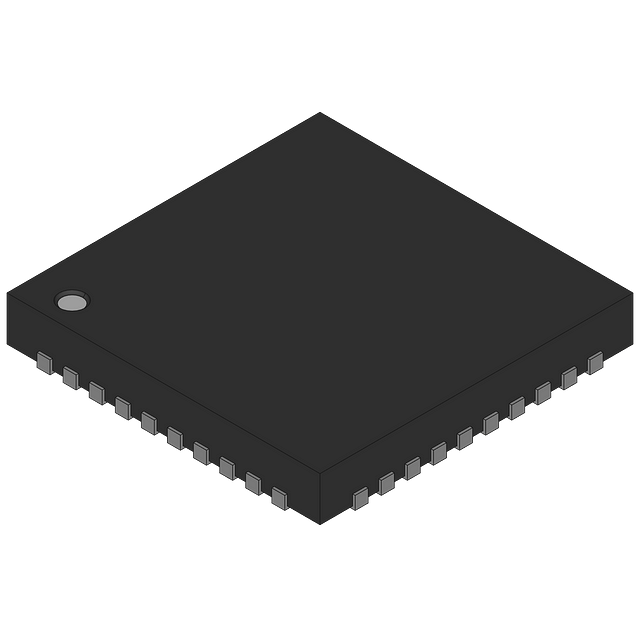

Product Images
