Single-phase multifunction metering IC with neutral current measurement. Features 660kΩ input impedance and operates across a -40°C to 85°C temperature range. This surface mount component, packaged in LFCSP EP, offers a nominal and operating supply current of 6.8mA. It is RoHS compliant and supplied on tape and reel in quantities of 5000.
PackageLFCSP EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADE7953ACPZ-RL technical specifications.
General
| Package/Case | LFCSP EP |
| Input Impedance | 660kR |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Nominal Supply Current | 6.8mA |
| Operating Supply Current | 6.8mA |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADE7953ACPZ-RL Datasheet
Download the complete datasheet for Analog Devices ADE7953ACPZ-RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

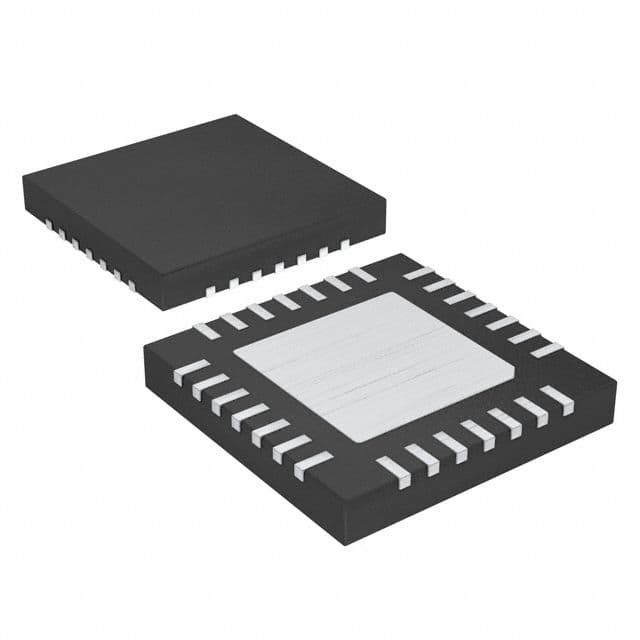

Product Images
