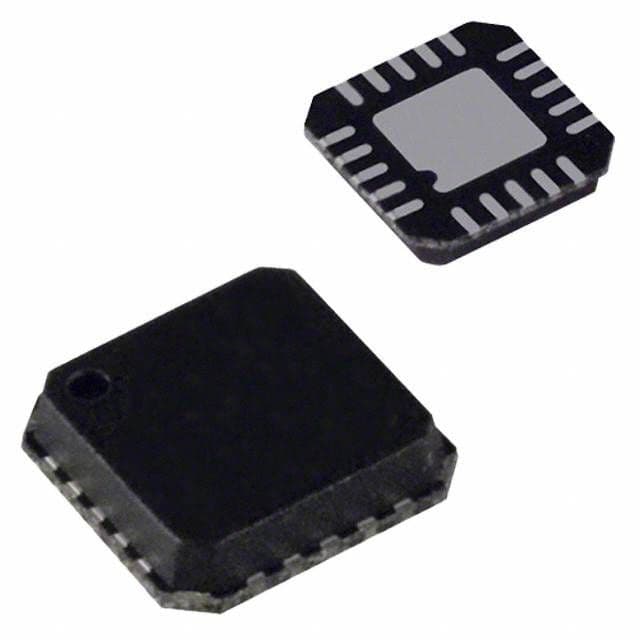

200 MHz Clock Generator PLL, a surface mount clock synthesizer IC, operates with a 2.7V to 5.5V supply voltage and a maximum supply current of 5.5mA. Featuring two outputs and a serial interface, this component generates frequencies up to 200MHz. Its LFCSP EP package measures 4mm in length and width, with a height of 0.83mm, and utilizes tin matte contact plating. This RoHS compliant device functions within an operating temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADF4001BCPZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LFCSP EP |
| Contact Plating | Tin, Matte |
| Data Rate | 200Kbps |
| Frequency | 200MHz |
| Height | 0.83mm |
| Input | CMOS |
| Interface | Serial |
| Lead Free | Contains Lead |
| Length | 4mm |
| Max Frequency | 200MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 5.5mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Supply Current | 4.5mA |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Outputs | 2 |
| Operating Supply Current | 4.5mA |
| Operating Supply Voltage | 5V |
| Packaging | Tray |
| PLL | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 5.5mA |
| Width | 4mm |
| RoHS | Compliant |
