200 MHz Clock Generator PLL, featuring two outputs and a maximum frequency of 200MHz. This surface mount integrated circuit operates with a supply voltage range of 2.7V to 5.5V, with a nominal operating current of 4.5mA. It supports CMOS input and is housed in an LFCSP EP package with tin, matte contact plating. Designed for a wide temperature range from -40°C to 85°C, this RoHS compliant component is supplied in tape and reel packaging.
Frequency200MHz
PackageLFCSP EP
Current5.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADF4001BCPZ-RL7 technical specifications.
General
Package/Case
LFCSP EP
Contact Plating
Tin, Matte
Data Rate
200Kbps
Input
CMOS
Lead Free
Contains Lead
Max Frequency
200MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Supply Current
4.5mA
Number of Circuits
1
Number of Elements
1
Number of Outputs
2
Operating Supply Current
4.5mA
Operating Supply Voltage
5V
Package Quantity
1500
Packaging
Tape and Reel
PLL
Yes
RoHS Compliant
Yes
Supply Current
5.5mA
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADF4001BCPZ-RL7 Datasheet
Download the complete datasheet for Analog Devices ADF4001BCPZ-RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

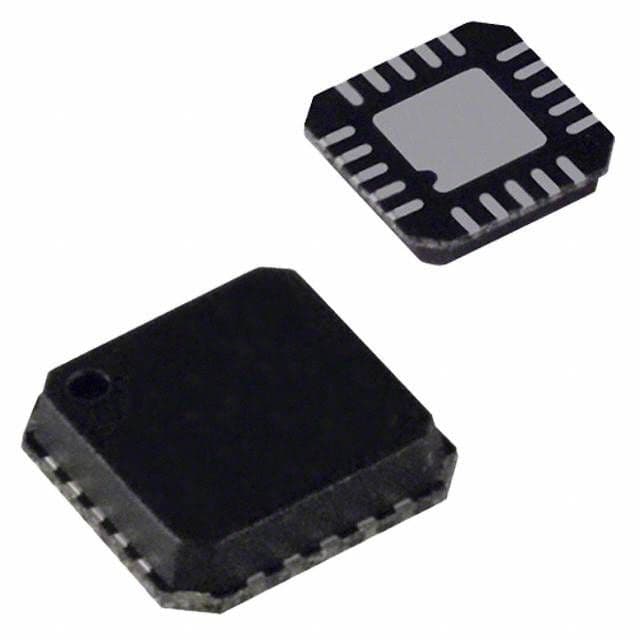

Product Images
