Single, integer-N 3.0 GHz Phase-Locked Loop (PLL) IC with programmable prescaler and charge pump. Features a maximum operating frequency of 3 GHz and a wide operating supply voltage range of 2.7V to 5.5V. This surface mount component is housed in a TSSOP package with tin, matte contact plating. It operates within a temperature range of -40°C to 85°C and has a typical supply current of 6.5mA.
Frequency3GHz
PackageTSSOP
Current6.5mA
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Analog Devices ADF4112BRUZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Analog Devices ADF4112BRUZ technical specifications.
General
| Package/Case | TSSOP |
| Contact Plating | Tin, Matte |
| Frequency | 3GHz |
| Height | 1.05mm |
| Input | CMOS |
| Lead Free | Contains Lead |
| Length | 5mm |
| Max Frequency | 3GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 7.5mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Outputs | 1 |
| Operating Supply Current | 6.5mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 96 |
| Packaging | Rail/Tube |
| PLL | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 6.5mA |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADF4112BRUZ Datasheet
Download the complete datasheet for Analog Devices ADF4112BRUZ to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

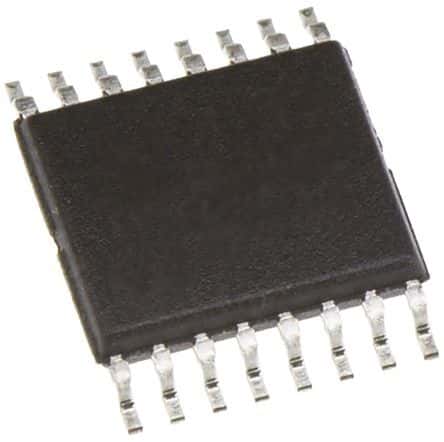

Product Images
