Dual Fractional-N/Integer-N Frequency Synthesizer, a Phase-Locked Loop (PLL) IC, operates up to 3GHz. Featuring two elements and a single circuit, it supports CMOS input and surface mount installation in an LFCSP EP package with tin, matte plating. This component functions within a 2.7V to 3.3V supply voltage range, drawing a nominal 13mA supply current. Its operating temperature spans from -40°C to 85°C.
Frequency3GHz
PackageLFCSP EP
Current13mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADF4252BCPZ technical specifications.
General
Package/Case
LFCSP EP
Contact Plating
Tin, Matte
Frequency
3GHz
Height
0.83mm
Input
CMOS
Lead Free
Contains Lead
Length
4mm
Max Frequency
3GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
16mA
Max Supply Voltage
3.3V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Supply Current
13mA
Number of Circuits
1
Number of Elements
2
Operating Supply Current
13mA
Operating Supply Voltage
3V
Package Quantity
1
Packaging
Tray
PLL
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
13mA
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADF4252BCPZ Datasheet
Download the complete datasheet for Analog Devices ADF4252BCPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

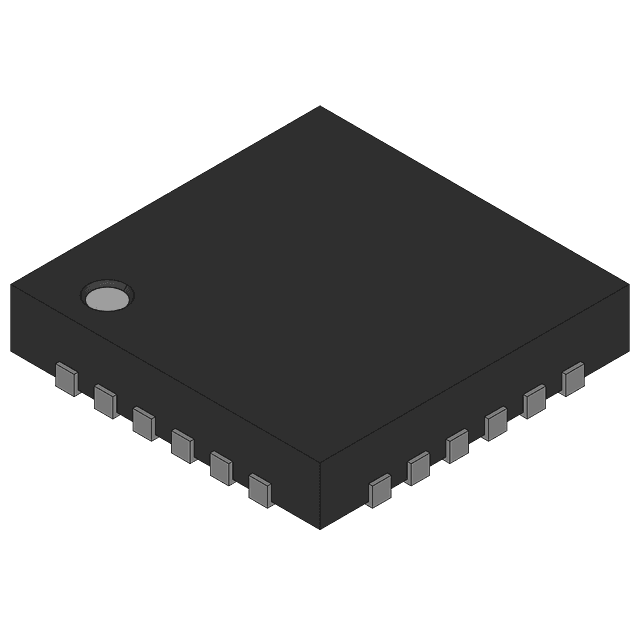

Product Images
