Integrated Integer-N Synthesizer and VCO, operating from 2050 to 2450 MHz, features a maximum output frequency of 2.45 GHz. This surface mount component, housed in an LFCSP EP package, offers three outputs and operates with a supply voltage range of 3V to 3.6V, with a nominal supply current of 48mA. It supports CMOS input and has a maximum input voltage of 1.5V, with a maximum output voltage of 2.6V and maximum output current of 500µA. The device operates across a temperature range of -40°C to 85°C.
Frequency2.45GHz
PackageLFCSP EP
Current10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADF4360-1BCPZ technical specifications.
General
Package/Case
LFCSP EP
Frequency
2.45GHz
Height
0.83mm
Input
CMOS
Lead Free
Contains Lead
Length
4mm
Max Frequency
2.45GHz
Max Input Voltage
1.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
500uA
Max Output Voltage
2.6V
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Nominal Supply Current
48mA
Number of Circuits
1
Number of Elements
1
Number of Outputs
3
Operating Supply Current
50mA
Operating Supply Voltage
3.3V
Package Quantity
1
Packaging
Tray
PLL
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
10mA
Termination
SMD/SMT
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADF4360-1BCPZ Datasheet
Download the complete datasheet for Analog Devices ADF4360-1BCPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

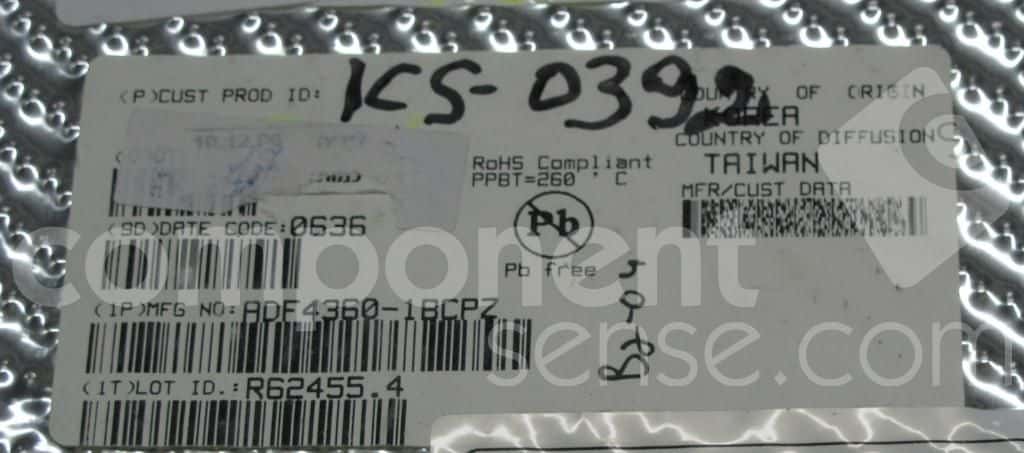

Product Images
