Quad SPST switch featuring iCMOS technology for low capacitance and charge injection. Offers a 1GHz bandwidth and operates with dual supply voltages up to ±15V. This integrated circuit supports parallel interface and has an on-state resistance of 475Ω. Designed for a wide operating temperature range of -40°C to 125°C, it is available in LFCSP EP packaging.
PackageLFCSP EP
Power3.8mW
Quick Jump:
Technical Specifications
Analog Devices ADG1213YCPZ-REEL7 technical specifications.
General
-3db Bandwidth
1GHz
Bandwidth
1GHz
Package/Case
LFCSP EP
Dual Supply Voltage
15V
Interface
Parallel
Lead Free
Contains Lead
Max Dual Supply Voltage
16.5V
Min Dual Supply Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
150uW
Max Supply Current
380uA
Max Supply Voltage
16.5V
Min Supply Voltage
5V
Number of Bits
4
Number of Channels
4
Number of Circuits
4
Number of Inputs
4
Number of Outputs
4
On-State Resistance
475R
Operating Supply Current
220uA
Operating Supply Voltage
12V
Package Quantity
1500
Packaging
Tape and Reel
Power Dissipation
3.8mW
RoHS Compliant
Yes
Series
iCMOS®
Supply Type
Single, Dual
Test Frequency
1MHz
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADG1213YCPZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADG1213YCPZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

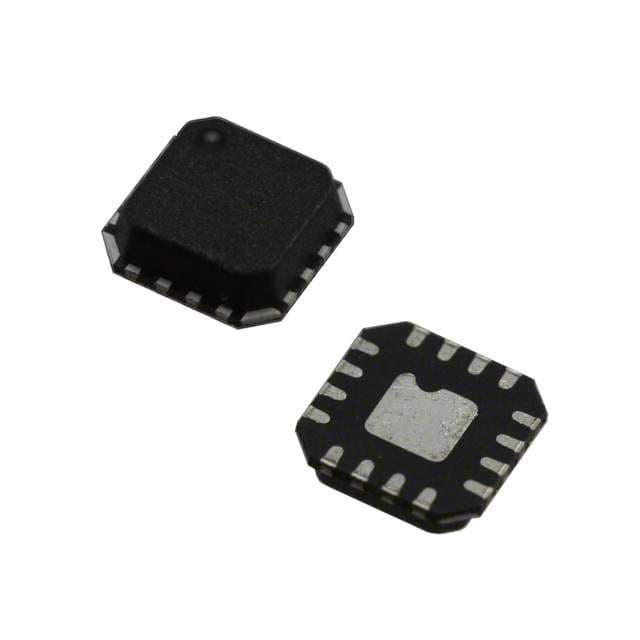

Product Images
