Quad SPST switch featuring 1.5 Ω on resistance and a 170MHz -3dB bandwidth. Operates with dual supply voltages up to ±15V or single supply from 4.5V to 16.5V. This integrated circuit offers 4 channels with parallel interface and a low insertion loss of -0.35dB at 1MHz. Packaged in a 5mm x 4.4mm x 1.05mm TSSOP, it functions across an operating temperature range of -40°C to 125°C.
PackageTSSOP
Power4.97mW
Quick Jump:
Technical Specifications
Analog Devices ADG1411YRUZ technical specifications.
General
-3db Bandwidth
170MHz
Bandwidth
170MHz
Package/Case
TSSOP
Dual Supply Voltage
15V
Height
1.05mm
Insertion Loss
-0.35dB
Interface
Parallel
Lead Free
Contains Lead
Length
5mm
Max Dual Supply Voltage
16.5V
Min Dual Supply Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
4.97mW
Max Supply Current
380uA
Max Supply Voltage
16.5V
Min Supply Voltage
5V
Number of Channels
4
Number of Circuits
4
Number of Inputs
4
Number of Outputs
4
Operating Supply Voltage
12V
Package Quantity
96
Packaging
Rail/Tube
Power Dissipation
4.97mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Type
Single, Dual
Test Frequency
1MHz
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADG1411YRUZ Datasheet
Download the complete datasheet for Analog Devices ADG1411YRUZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

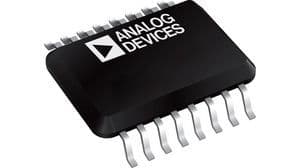

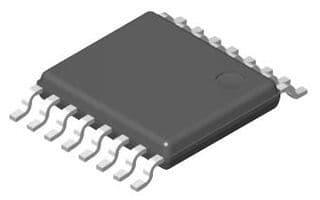

Product Images
