SPDT switch with 2.1Ω on-resistance, supporting ±15V/+12V/±5V dual supply operation. Features a 135MHz -3dB bandwidth and 0.16dB insertion loss at 1MHz. Operates across a wide temperature range of -40°C to 125°C with a maximum power dissipation of 2mW. This component offers single-channel, single-circuit functionality with a parallel interface.
Power2mW
Quick Jump:
Technical Specifications
Analog Devices ADG1419BCPZ-REEL7 technical specifications.
General
-3db Bandwidth
135MHz
Bandwidth
135MHz
Drain to Source Resistance
2.4R
Dual Supply Voltage
15V
Insertion Loss
0.16dB
Interface
Parallel
Lead Free
Contains Lead
Max Dual Supply Voltage
16.5V
Min Dual Supply Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
2mW
Max Supply Current
190uA
Max Supply Voltage
16.5V
Min Supply Voltage
5V
Number of Channels
1
Number of Circuits
1
Operating Supply Voltage
12V
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
2mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Type
Single, Dual
Test Frequency
1MHz
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADG1419BCPZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADG1419BCPZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

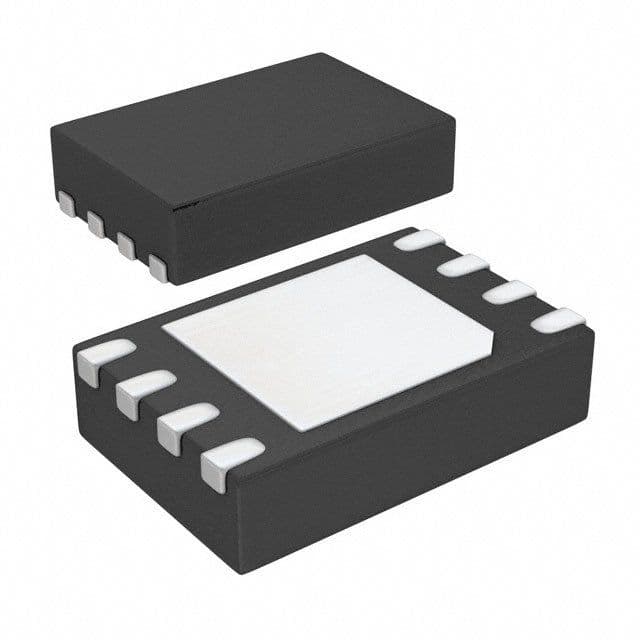

Product Images
