Analog Devices
ADG221KN
IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDIP16, PLASTIC, DIP-16, Multiplexer or Switch
IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDIP16, PLASTIC, DIP-16, Multiplexer or Switch
PackageN
Power25.5mW
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Analog Devices ADG221KN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Analog Devices ADG221KN technical specifications.
General
| Package/Case | N |
| Dual Supply Voltage | 15V |
| Max Dual Supply Voltage | 22V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 25V |
| Number of Bits | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Inputs | 4 |
| Number of Outputs | 4 |
| Operating Supply Voltage | 15V |
| Packaging | Rail/Tube |
| Power Dissipation | 25.5mW |
| RoHS Compliant | No |
| Throw Configuration | SPST |
Compliance
| RoHS | Not Compliant |
Datasheet
Analog Devices ADG221KN Datasheet
Download the complete datasheet for Analog Devices ADG221KN to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

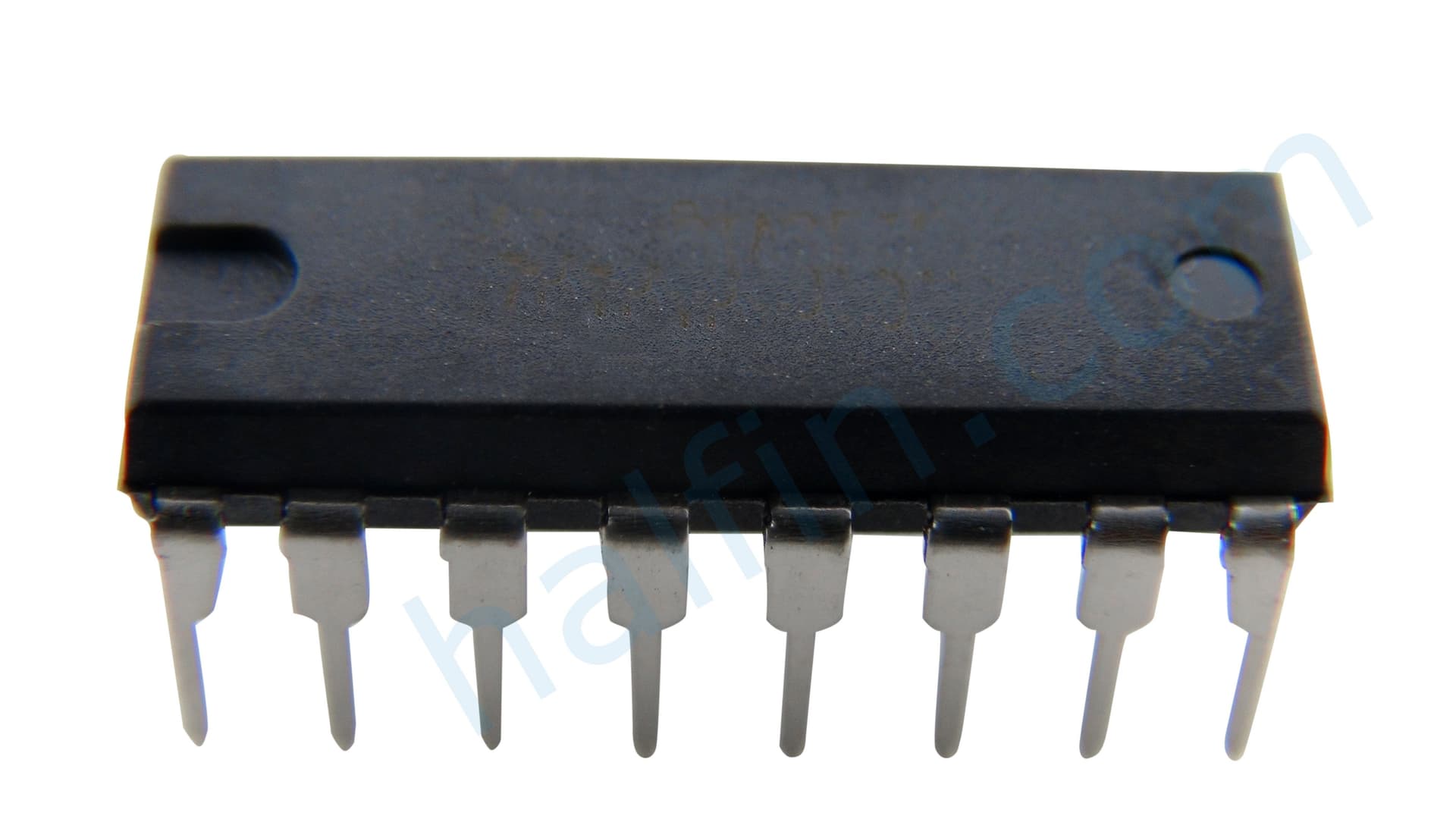

Product Images
