Precision quad SPST switch featuring LC2MOS technology. Offers 4 channels with 4 inputs and 4 outputs, operating with single or dual supply voltages from 5V to 25V, with a typical operating voltage of 12V. Drain to source resistance is 17R, and it supports a maximum power dissipation of 600mW. Packaged in a 10mm x 4mm x 1.5mm R-type case, this RoHS compliant component operates between -40°C and 85°C.
PackageR
Power600mW
Quick Jump:
Technical Specifications
Analog Devices ADG433BRZ technical specifications.
General
| Package/Case | R |
| Drain to Source Resistance | 17R |
| Dual Supply Voltage | 15V |
| Height | 1.5mm |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Length | 10mm |
| Max Dual Supply Voltage | 22V |
| Min Dual Supply Voltage | 13.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 7.7uW |
| Max Supply Current | 100nA |
| Max Supply Voltage | 25V |
| Min Supply Voltage | 5V |
| Number of Bits | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Inputs | 4 |
| Number of Outputs | 4 |
| Operating Supply Voltage | 12V |
| Package Quantity | 48 |
| Packaging | Rail/Tube |
| Power Dissipation | 600mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Type | Single, Dual |
| Throw Configuration | SPST |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADG433BRZ Datasheet
Download the complete datasheet for Analog Devices ADG433BRZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

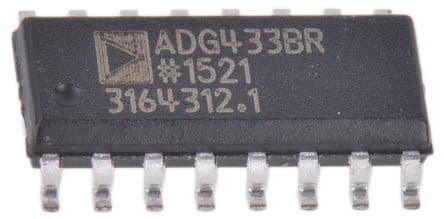

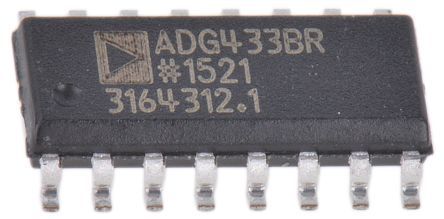

Product Images
