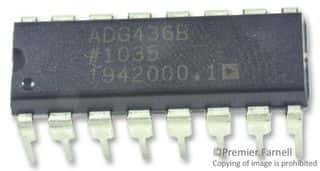

Dual SPDT Switch, LC2MOS technology, offering 2 channels with 2 circuits each. Features a low drain-to-source resistance of 12 Ohms and operates with dual supply voltages from 3V to 15V, with a maximum dual supply of 20V. Through-hole mounted in a PDIP package, this non-inverting switch supports parallel interface and has a maximum operating temperature of 85°C. Power dissipation is 5.3mW, with a typical operating supply current of 50µA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADG436BNZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | PDIP |
| Drain to Source Resistance | 12R |
| Dual Supply Voltage | 15V |
| Height | 5.33mm |
| High Level Output Current | 20mA |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Length | 20.32mm |
| Max Dual Supply Voltage | 20V |
| Min Dual Supply Voltage | 3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 5.3mW |
| Max Supply Current | 350uA |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Bits | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Number of Outputs | 4 |
| Operating Supply Current | 50uA |
| Operating Supply Voltage | 12V |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Power Dissipation | 5.3mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Type | Single, Dual |
| Test Frequency | 1MHz |
| Throw Configuration | SPDT |
| Turn-Off Delay Time | 90ns |
| Turn-On Delay Time | 100ns |
| Width | 7.11mm |
| RoHS | Compliant |
