High-performance analog multiplexer featuring 4 channels and 2 circuits, operating with a dual supply voltage of ±5V up to a maximum of ±6.5V. This LC2MOS device offers a low drain-to-source resistance of 22Ω and a propagation delay of 75ns, with turn-on and turn-off times of 170ns and 60ns respectively. It supports a parallel interface and has a maximum power dissipation of 1.5µW. The component is housed in a TSSOP package, measures 5mm in length, 4.4mm in width, and 1.05mm in height, with a RoHS compliant status.
PackageTSSOP
Current50nA
Power2uW
Quick Jump:
Technical Specifications
Analog Devices ADG609BRUZ technical specifications.
General
| Package/Case | TSSOP |
| Drain to Source Resistance | 22R |
| Dual Supply Voltage | 5V |
| Height | 1.05mm |
| High Level Output Current | 20mA |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Length | 5mm |
| Max Dual Supply Voltage | 6.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.5uW |
| Max Supply Current | 200nA |
| Max Supply Voltage | 6.5V |
| Min Supply Voltage | 3V |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Inputs | 8 |
| Number of Outputs | 2 |
| Operating Supply Current | 50nA |
| Operating Supply Voltage | 5V |
| Package Quantity | 96 |
| Packaging | Rail/Tube |
| Power Dissipation | 2uW |
| Propagation Delay | 75ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 50nA |
| Throw Configuration | 4PST |
| Turn-Off Delay Time | 60ns |
| Turn-On Delay Time | 170ns |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADG609BRUZ Datasheet
Download the complete datasheet for Analog Devices ADG609BRUZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

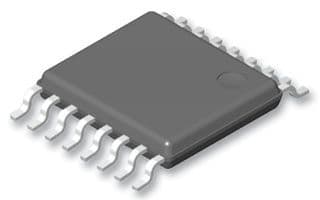

Product Images
