CMOS 4-channel analog multiplexer featuring a 400MHz -3dB bandwidth. This integrated circuit offers 2 circuits, each with 4 channels, 8 inputs, and 2 outputs. It supports single and dual supply operation from 2V to 12V, with a maximum dual supply voltage of 6V. The device operates across a temperature range of -40°C to 125°C and has an on-state resistance of 150 Ohms. Packaged in LFCSP EP, this RoHS compliant component is supplied on tape and reel.
PackageLFCSP EP
Quick Jump:
Technical Specifications
Analog Devices ADG659YCPZ-REEL7 technical specifications.
General
| -3db Bandwidth | 400MHz |
| Bandwidth | 400MHz |
| Package/Case | LFCSP EP |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Logic Function | Multiplexer |
| Max Dual Supply Voltage | 6V |
| Min Dual Supply Voltage | 2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 10uW |
| Max Supply Voltage | 12V |
| Min Supply Voltage | 2V |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Inputs | 8 |
| Number of Outputs | 2 |
| On-State Resistance | 150R |
| Operating Supply Current | 10nA |
| Operating Supply Voltage | 5V |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Type | Single, Dual |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADG659YCPZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADG659YCPZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

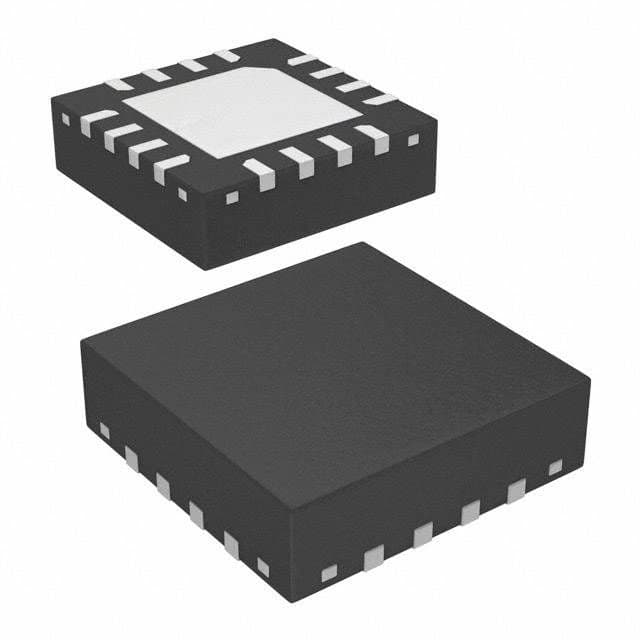

Product Images
