32-channel analog multiplexer featuring low on-resistance of 4Ω and 5.5R. Operates with single or dual supplies from 1.8V to 5.5V, with a dual supply voltage of 2.5V. Offers a -3dB bandwidth of 18MHz and a parallel interface. Packaged in TQFP on tape and reel, this RoHS compliant component has a maximum operating temperature of 85°C.
PackageTQFP
Quick Jump:
Technical Specifications
Analog Devices ADG732BSUZ-REEL technical specifications.
General
-3db Bandwidth
18MHz
Bandwidth
18MHz
Package/Case
TQFP
Dual Supply Voltage
2.5V
Interface
Parallel
Lead Free
Contains Lead
Logic Function
Multiplexer
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
100uW
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Number of Channels
32
Number of Circuits
1
Number of Inputs
32
Number of Outputs
1
On-State Resistance
5.5R
Operating Supply Current
10uA
Operating Supply Voltage
5V
Package Quantity
2000
Packaging
Tape and Reel
RoHS Compliant
Yes
Supply Type
Single, Dual
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADG732BSUZ-REEL Datasheet
Download the complete datasheet for Analog Devices ADG732BSUZ-REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

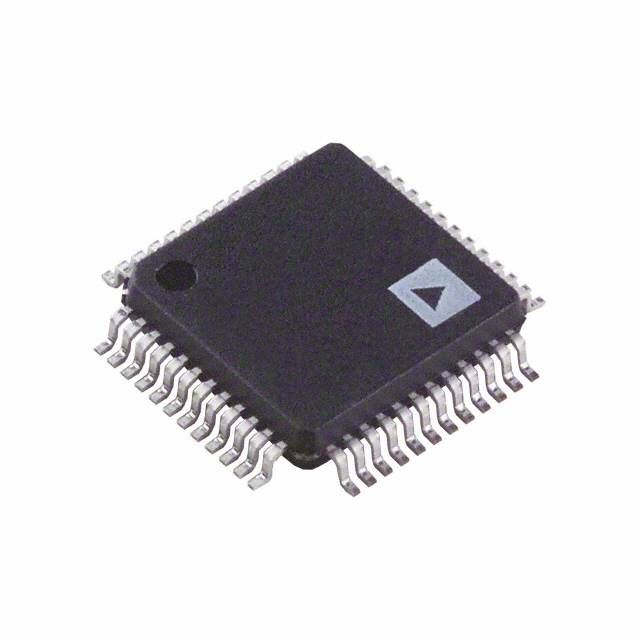

Product Images
