Dual 2:1 MUX/SPDT audio switch featuring 0.5 Ω on-resistance and 18MHz -3dB bandwidth. This CMOS integrated circuit operates with a supply voltage range of 1.8V to 5.5V, drawing a maximum supply current of 1µA and dissipating 5.5µW. It offers 2 channels, each with 2 inputs and 4 outputs, and a throw configuration of SPDT. The component is housed in a compact MSOP package with dimensions of 3mm (length) x 3mm (width) x 0.85mm (height).
PackageMSOP
Voltage5V
Current1uA
Power5.5uW
Quick Jump:
Technical Specifications
Analog Devices ADG884BRMZ technical specifications.
General
| -3db Bandwidth | 18MHz |
| Bandwidth | 18MHz |
| Package/Case | MSOP |
| Drain to Source Resistance | 280mR |
| Height | 0.85mm |
| Insertion Loss | 0.03dB |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Length | 3mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 5.5uW |
| Max Supply Current | 1uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Number of Bits | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Number of Outputs | 4 |
| Operating Supply Voltage | 5.5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 5.5uW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 1uA |
| Supply Type | Single |
| Test Frequency | 100kHz |
| Throw Configuration | SPDT |
| Voltage | 5V |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADG884BRMZ Datasheet
Download the complete datasheet for Analog Devices ADG884BRMZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

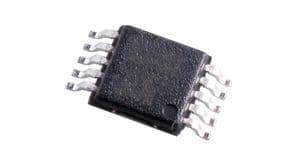

Product Images
