Analog Devices
ADIS16480AMLZ
Ten Degrees of Freedom MEMS Inertial Sensor with Dynamic Orientation Outputs
PackageModule
Current254mA
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Analog Devices ADIS16480AMLZ technical specifications.
General
| -3db Bandwidth | 330Hz |
| Bandwidth | 330Hz |
| Package/Case | Module |
| Contact Plating | Tin, Matte |
| Interface | SPI |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Chassis Mount, Screw |
| Operating Supply Current | 254mA |
| Output Type | SPI |
| Package Quantity | 1 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Sensor Type | Accelerometer, Barometric Pressure, Gyroscope, Magnetometer |
| Series | iMEMS®, iSensor™ |
| Supply Current | 254mA |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Analog Devices ADIS16480AMLZ Datasheet
Download the complete datasheet for Analog Devices ADIS16480AMLZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

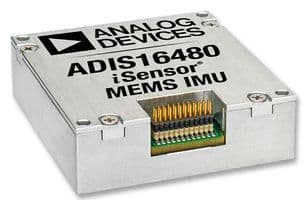

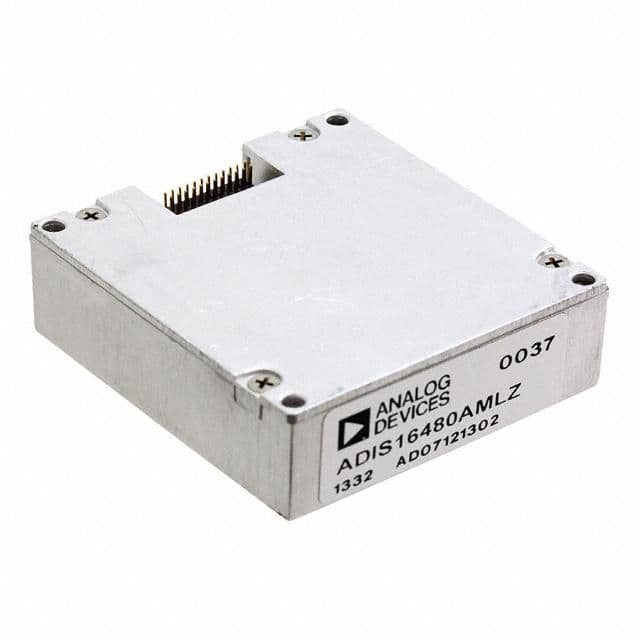

Product Images
