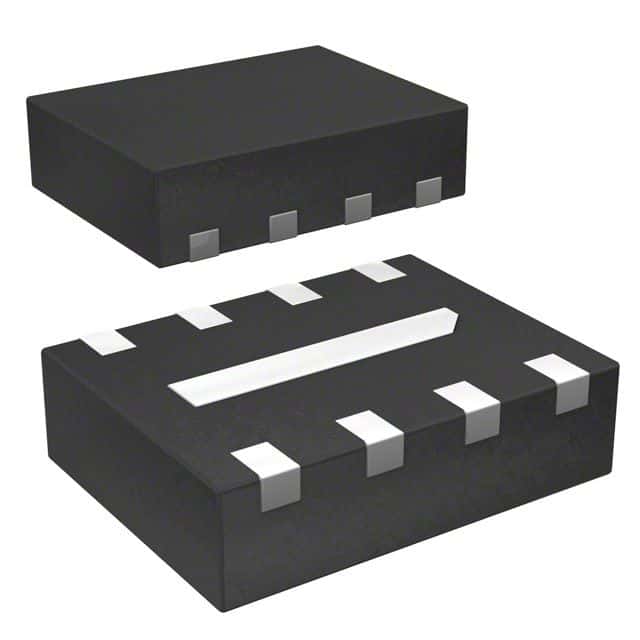

LF to 4 GHz Y-Mixer for telecommunications applications. Features a 750 MHz operating frequency, 6.4 dB noise figure, and 19.8 dBm P1dB. Operates with a 3.5V supply voltage and 16.5mA current. Packaged in LFCSP EP for surface mounting, with a temperature range of -40°C to 85°C. RoHS compliant and supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADL5350ACPZ-R7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices ADL5350ACPZ-R7 technical specifications.
| Package/Case | LFCSP EP |
| Frequency | 750MHz |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 324mW |
| Mount | Surface Mount |
| Noise Figure | 6.4dB |
| Operating Supply Current | 16.5mA |
| Operating Supply Voltage | 3.5V |
| P1dB | 19.8dBm |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 324mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | ADL5350 |
| Supply Current | 16.5mA |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices ADL5350ACPZ-R7 to view detailed technical specifications.
