Full-duplex RS-232 transceiver in a compact MSOP package, featuring 460Kbps data rate and integrated ESD protection. Operates from a 4.5V to 5.5V supply voltage with a typical supply current of 1mA. This interface IC offers one driver and one receiver, supporting robust communication with 200mV receiver hysteresis. Designed for portable applications, it boasts a low profile of 0.85mm and dimensions of 3mm x 3mm.
PackageMSOP
Current2.5mA
Quick Jump:
Technical Specifications
Analog Devices ADM101EARMZ technical specifications.
General
| Package/Case | MSOP |
| Contact Plating | Tin, Matte |
| Data Rate | 460Kbps |
| ESD Protection | Yes |
| Height | 0.85mm |
| Interface | RS-232 |
| Lead Free | Contains Lead |
| Length | 3mm |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 2.5mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Current | 1mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Receiver Hysteresis | 200mV |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 2.5mA |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADM101EARMZ Datasheet
Download the complete datasheet for Analog Devices ADM101EARMZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

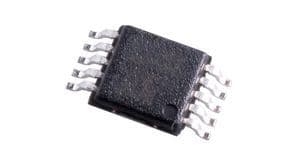

Product Images
