Multisupply supervisor and sequencer with integrated ADC and temperature monitoring. Features 10 monitored voltage inputs, a 12-bit ADC resolution, and a watchdog timer. Operates from a 3V to 6V supply with a maximum supply current of 6mA. Offers reset threshold voltages from 573mV to 1.375V, with an overvoltage threshold of 8.4V and undervoltage threshold of 6V. Packaged in a 7mm x 9mm x 1.05mm TQFP surface mount package, with a maximum operating temperature of 85°C.
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM1063ASUZ technical specifications.
General
Package/Case
TQFP
Height
1.05mm
Lead Free
Contains Lead
Length
9mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
1.375V
Min Reset Threshold Voltage
573mV
Max Supply Current
6mA
Max Supply Voltage
6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Monitored Inputs
10
Number of Voltages Monitored
10
Operating Supply Current
4.2mA
Overvoltage Threshold
8.4V
Package Quantity
1
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Series
Super Sequencer®
Threshold Voltage
14.4V
Type
Sequencer
Undervoltage Threshold
6V
Watchdog Timer
Yes
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM1063ASUZ Datasheet
Download the complete datasheet for Analog Devices ADM1063ASUZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

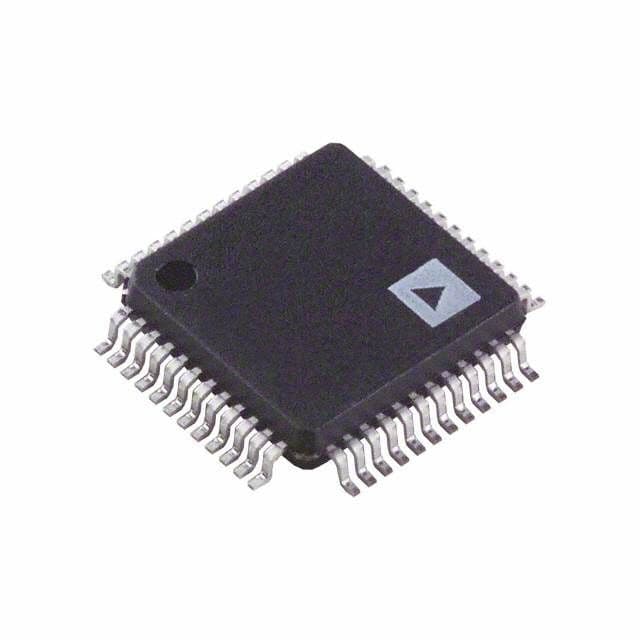

Product Images
