Multi-voltage sequencer and supervisor IC featuring 8 monitored inputs and 8 monitored voltages. Operates from a 3V to 14.4V supply voltage with a maximum supply current of 6mA. Includes adjustable reset threshold voltages from 573mV to 1.375V, with overvoltage and undervoltage thresholds at 9.6V and 6V respectively. This surface mount component, housed in an LQFP package, offers a 400kHz frequency and a watchdog timer.
Frequency400kHz
PackageLQFP
Current4.2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM1068ASTZ technical specifications.
General
Package/Case
LQFP
Frequency
400kHz
Height
1.45mm
Lead Free
Contains Lead
Length
7mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
1.375V
Min Reset Threshold Voltage
573mV
Max Supply Current
6mA
Max Supply Voltage
14.4V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Monitored Inputs
8
Number of Voltages Monitored
8
Operating Supply Current
4.2mA
Overvoltage Threshold
9.6V
Package Quantity
1
Packaging
Tray
RoHS Compliant
Yes
Series
Super Sequencer®
Supply Current
4.2mA
Termination
SMD/SMT
Threshold Voltage
14.4V
Type
Sequencer
Undervoltage Threshold
6V
Watchdog Timer
Yes
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM1068ASTZ Datasheet
Download the complete datasheet for Analog Devices ADM1068ASTZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

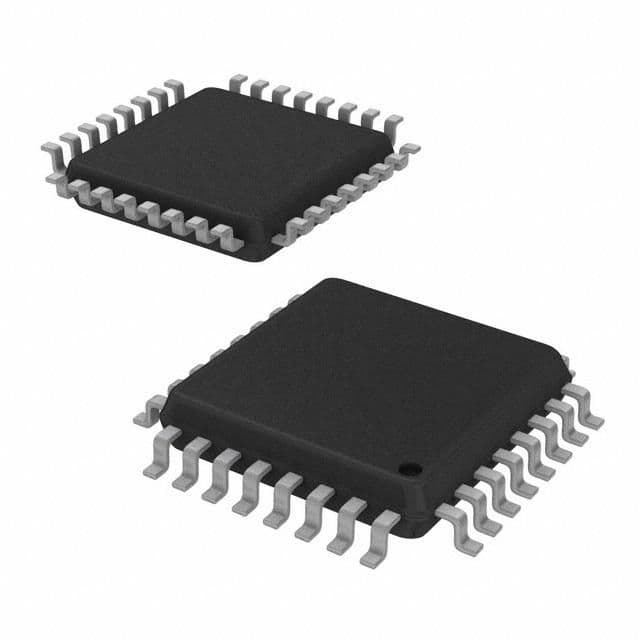

Product Images
