Power management IC featuring a Super Sequencer® with margining control and non-volatile fault recording. This surface mount component, housed in a 7mm x 7mm x 1mm TQFP package with tin-matte contact plating, operates across a 3V to 14.4V supply voltage range. It monitors up to 10 inputs, with undervoltage thresholds at 6V and overvoltage at 8.4V, and includes a watchdog timer. Operating current is 4.2mA, with a temperature range of -40°C to 85°C.
PackageTQFP
Current4.2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM1166ASUZ technical specifications.
General
Package/Case
TQFP
Contact Plating
Tin, Matte
Height
1mm
Lead Free
Contains Lead
Length
7mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
6V
Min Reset Threshold Voltage
2.5V
Max Supply Voltage
14.4V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Monitored Inputs
10
Operating Supply Current
4.2mA
Overvoltage Threshold
8.4V
Package Quantity
250
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Super Sequencer®
Supply Current
4.2mA
Threshold Voltage
14.4V
Undervoltage Threshold
6V
Watchdog Timer
Yes
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM1166ASUZ Datasheet
Download the complete datasheet for Analog Devices ADM1166ASUZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

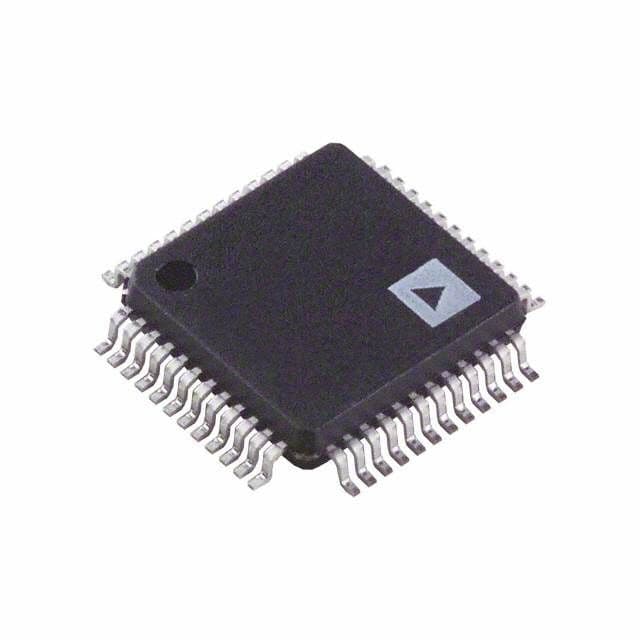

Product Images
