Surface mount microprocessor supervisory IC with active low push-pull output. Features a reset threshold voltage range of 2.12V to 2.25V, operating from 1V to 5.5V supply voltage with a low 16µA supply current. Includes a 250ms reset delay and 100ms reset timeout. Packaged in tape and reel, this component is RoHS compliant and suitable for operation between -40°C and 105°C.
PackageSC
Current16uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM1815-R22AKSZ-R7 technical specifications.
General
Package/Case
SC
Lead Free
Contains Lead
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
2.25V
Min Reset Threshold Voltage
2.12V
Max Supply Current
16uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
16uA
Output
TOTEM-POLE
Output Type
PUSH-PULL
Overvoltage Threshold
2.25V
Package Quantity
3000
Packaging
Tape and Reel
Reset
Active Low
Reset Delay Time
250ms
Reset Timeout
100ms
RoHS Compliant
Yes
Supply Current
16uA
Threshold Voltage
2.18V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
2.12V
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM1815-R22AKSZ-R7 Datasheet
Download the complete datasheet for Analog Devices ADM1815-R22AKSZ-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

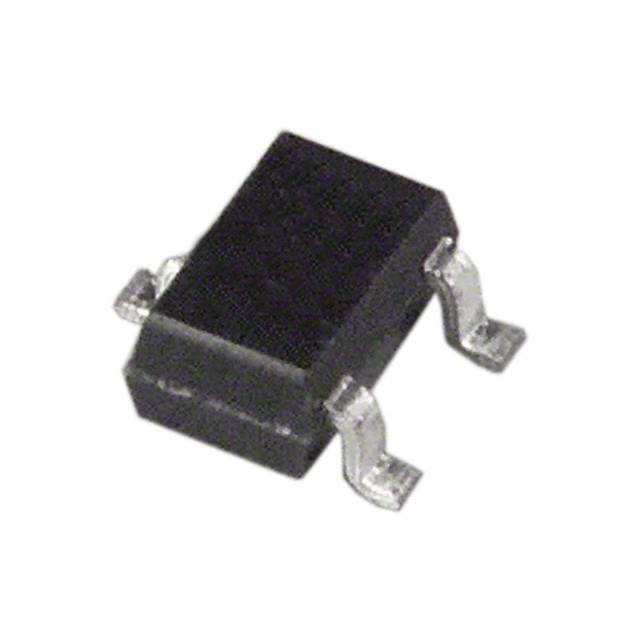

Product Images
