1-channel power supply support circuit, PDSO3, SC-70, 3-pin. Features a reset threshold voltage range of 2.25V to 2.37V. Operates with a supply voltage from 1V to 5.5V and a low supply current of 16µA. Includes active-low reset with a 250ms reset delay and 100ms reset timeout. Surface mountable, packaged in tape and reel.
PackageSC
Current16uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM1818-R23AKS-RL7 technical specifications.
General
Package/Case
SC
Lead Free
Contains Lead
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
2.37V
Min Reset Threshold Voltage
2.25V
Max Supply Current
16uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
16uA
Overvoltage Threshold
2.37V
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reset
Active Low
Reset Delay Time
250ms
Reset Timeout
100ms
RoHS Compliant
No
Supply Current
16uA
Threshold Voltage
2.31V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
2.25V
Watchdog Timer
No
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices ADM1818-R23AKS-RL7 Datasheet
Download the complete datasheet for Analog Devices ADM1818-R23AKS-RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

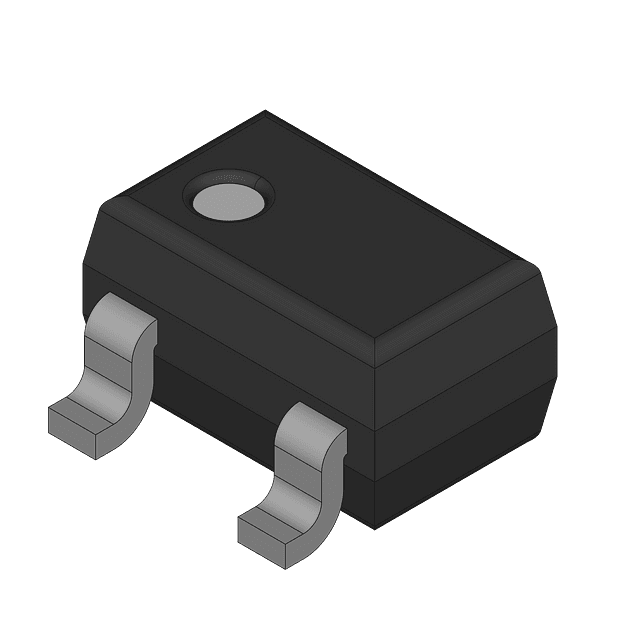

Product Images
