Analog Devices
ADM206ARS
0.1 µF, +5V CMOS RS-232 200kBPS Transceiver with 4 Drivers, 3 Receivers, a Shutdown Pin and an Enable Pin
PackageSSOP
Current7mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM206ARS technical specifications.
General
Package/Case
SSOP
Data Rate
120Kbps
Lead Free
Contains Lead
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
4
Number of Receivers
3
Number of Transceivers
1
Number of Transmitters
4
Operating Supply Current
7mA
Operating Supply Voltage
5V
Package Quantity
59
Packaging
Rail/Tube
Radiation Hardening
No
Receiver Hysteresis
650mV
RoHS Compliant
No
Simplex/Duplex
Full Duplex
Supply Current
7mA
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices ADM206ARS Datasheet
Download the complete datasheet for Analog Devices ADM206ARS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

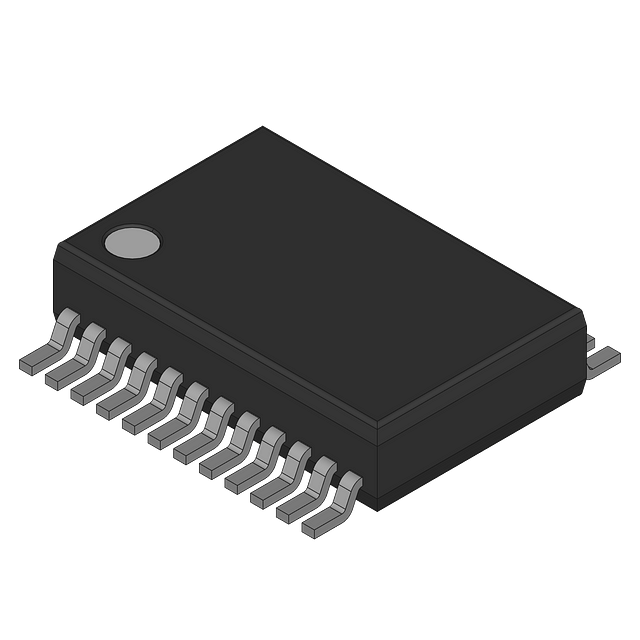

Product Images
