5V CMOS RS-232 transceiver with 4 drivers and 4 receivers, operating at 120Kbps. This surface mount interface IC features full-duplex communication and a 5V operating supply voltage, with a supply current of 9mA. It supports an operating temperature range of -40°C to 85°C and is housed in a compact SSOP package measuring 8.5mm x 5.6mm x 1.85mm.
PackageSSOP
Current13mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM208ARSZ technical specifications.
General
Package/Case
SSOP
Data Rate
120Kbps
Height
1.85mm
Interface
RS-232
Lead Free
Contains Lead
Length
8.5mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
4
Number of Receivers
4
Number of Transceivers
1
Number of Transmitters
4
Operating Supply Current
9mA
Operating Supply Voltage
5V
Package Quantity
59
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Receiver Hysteresis
650mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
13mA
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM208ARSZ Datasheet
Download the complete datasheet for Analog Devices ADM208ARSZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

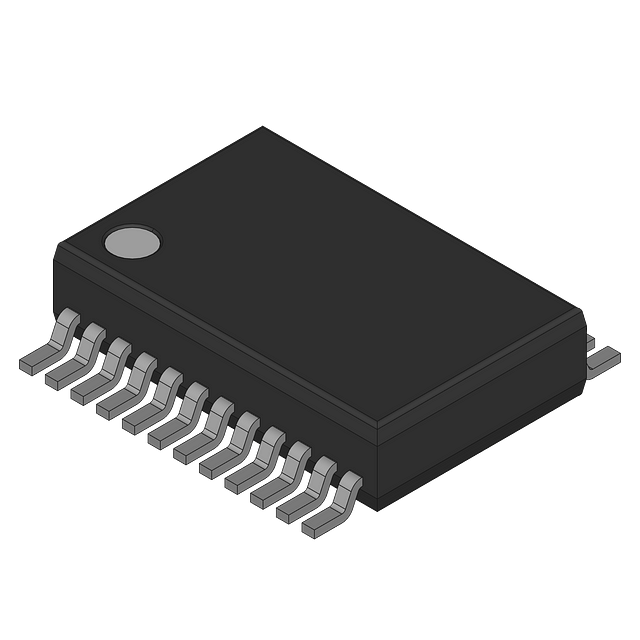

Product Images
