Full duplex RS-232 transceiver featuring 4 drivers and 4 receivers, operating at up to 230Kbps. This interface IC offers ±15kV ESD protection and is designed for EMI/EMC compliance. It operates from a 4.5V to 5.5V supply voltage with a typical supply current of 13mA. The component is housed in a compact SSOP package, suitable for surface mounting, with dimensions of 8.2mm length, 5.3mm width, and 1.75mm height. Operating temperature range is -40°C to 85°C.
PackageSSOP
Current13mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM208EARSZ technical specifications.
General
| Package/Case | SSOP |
| Data Rate | 230Kbps |
| Height | 1.75mm |
| Interface | RS-232 |
| Lead Free | Contains Lead |
| Length | 8.2mm |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 4 |
| Number of Receivers | 4 |
| Number of Transceivers | 1 |
| Number of Transmitters | 4 |
| Operating Supply Current | 13mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 59 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Receiver Hysteresis | 650mV |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 13mA |
| Width | 5.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADM208EARSZ Datasheet
Download the complete datasheet for Analog Devices ADM208EARSZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

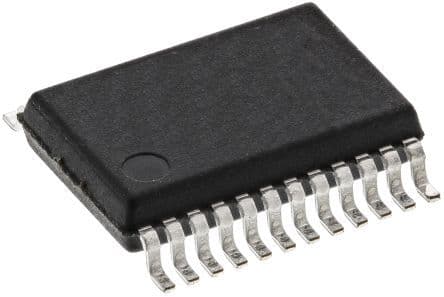

Product Images
