Analog Devices
ADM211EARS-REEL
EMI/EMC Compliant, ±15kV Protected, RS-232 230kBPS Transceiver with 4 Drivers, 5 Receivers and Shutdown and Enable Pins
PackageSSOP
Current13mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM211EARS-REEL technical specifications.
General
Package/Case
SSOP
Data Rate
230Kbps
Lead Free
Contains Lead
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
4
Number of Receivers
5
Number of Transceivers
1
Number of Transmitters
4
Operating Supply Current
13mA
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Receiver Hysteresis
650mV
RoHS Compliant
No
Simplex/Duplex
Full Duplex
Supply Current
13mA
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices ADM211EARS-REEL Datasheet
Download the complete datasheet for Analog Devices ADM211EARS-REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

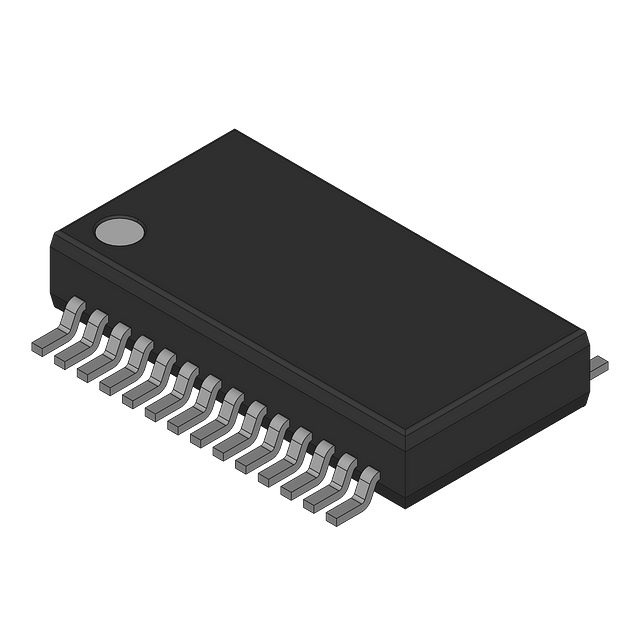

Product Images
