Full-duplex, 5V CMOS RS-232 bus transceiver featuring 4 drivers and 5 receivers. Operates at data rates up to 120Kbps with a maximum supply current of 13mA. Includes shutdown and enable pins for power management. Designed for surface mount applications in a SSOP package with tin, matte contact plating. Operating temperature range is -40°C to 85°C.
PackageSSOP
Current13mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM241LARSZ-REEL technical specifications.
General
| Package/Case | SSOP |
| Contact Plating | Tin, Matte |
| Data Rate | 120Kbps |
| ESD Protection | No |
| Lead Free | Contains Lead |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 13mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 4 |
| Number of Receivers | 5 |
| Number of Transceivers | 1 |
| Number of Transmitters | 4 |
| Operating Supply Current | 13mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Receiver Hysteresis | 650mV |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 13mA |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADM241LARSZ-REEL Datasheet
Download the complete datasheet for Analog Devices ADM241LARSZ-REEL to view detailed technical specifications.
No datasheet is available for this part.

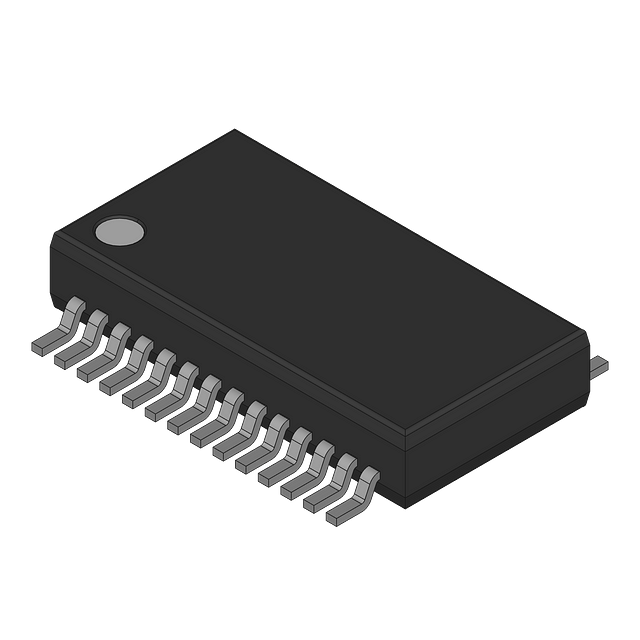

Product Images
