Analog Devices
ADM241LJR
Low Power, +5V CMOS RS-232 100kBPS Transceiver with 4 Drivers, 5 Receivers, Shutdown and Enable Pins
PackageSOIC
Current13mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM241LJR technical specifications.
General
Package/Case
SOIC
Data Rate
120Kbps
Lead Free
Contains Lead
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
4
Number of Receivers
5
Number of Transceivers
1
Number of Transmitters
4
Operating Supply Current
13mA
Operating Supply Voltage
5V
Package Quantity
27
Packaging
Rail/Tube
Radiation Hardening
No
Receiver Hysteresis
650mV
RoHS Compliant
No
Simplex/Duplex
Full Duplex
Supply Current
13mA
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices ADM241LJR Datasheet
Download the complete datasheet for Analog Devices ADM241LJR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

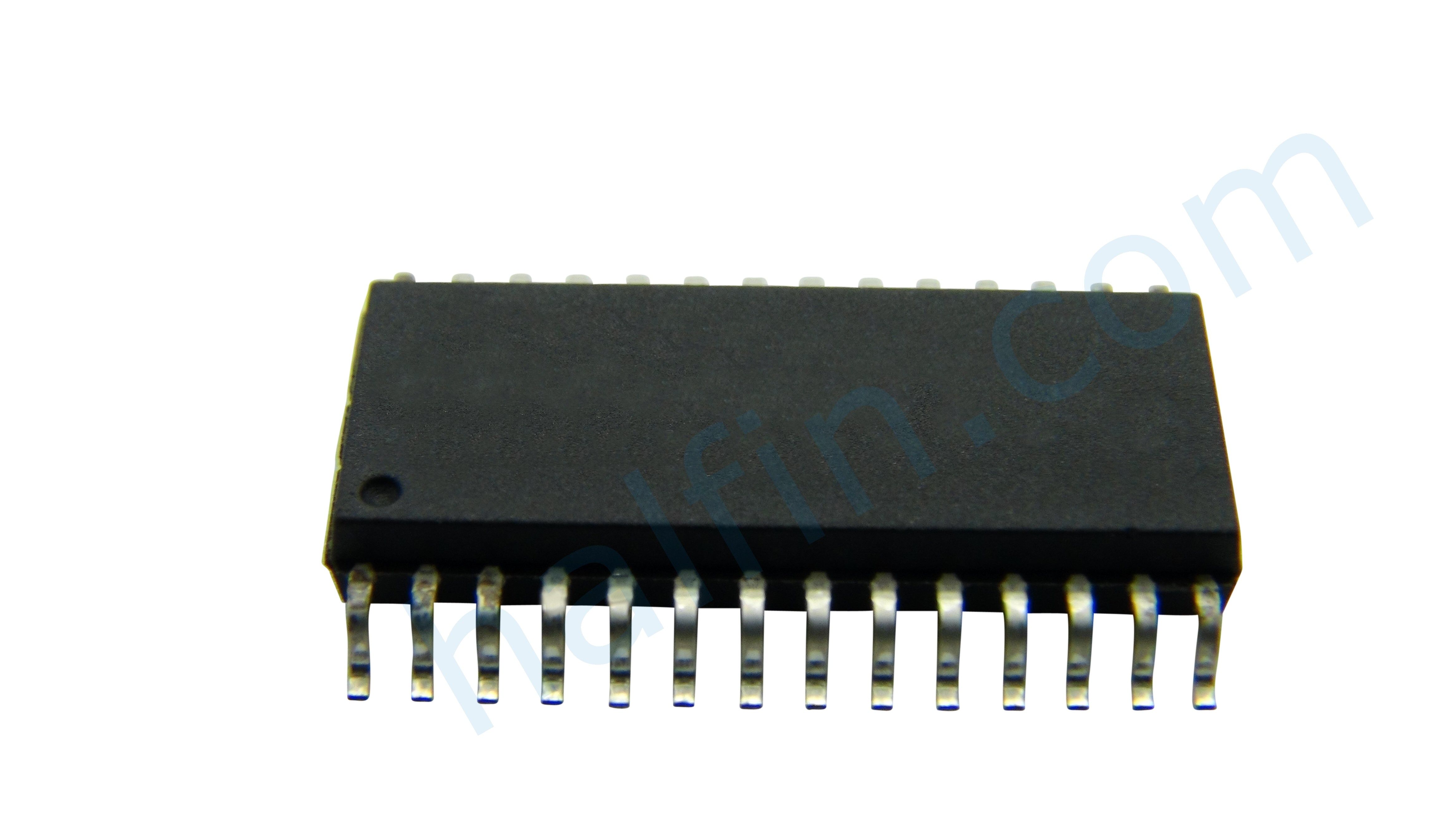

Product Images
