3.3V single-channel RS-232 line driver/receiver with ±15 kV ESD protection. Features a full-duplex transceiver with one driver and one receiver, supporting data rates up to 460Kbps. Operates from a 3V to 5.5V supply voltage with a typical operating supply current of 5mA. Housed in an LFCSP EP package, this RoHS compliant component is supplied on tape and reel in quantities of 5000.
PackageLFCSP EP
Current5mA
Quick Jump:
Technical Specifications
Analog Devices ADM3101EACPZ-REEL technical specifications.
General
| Package/Case | LFCSP EP |
| Data Rate | 460Kbps |
| Lead Free | Contains Lead |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Current | 5mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Receiver Hysteresis | 400mV |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 5mA |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADM3101EACPZ-REEL Datasheet
Download the complete datasheet for Analog Devices ADM3101EACPZ-REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

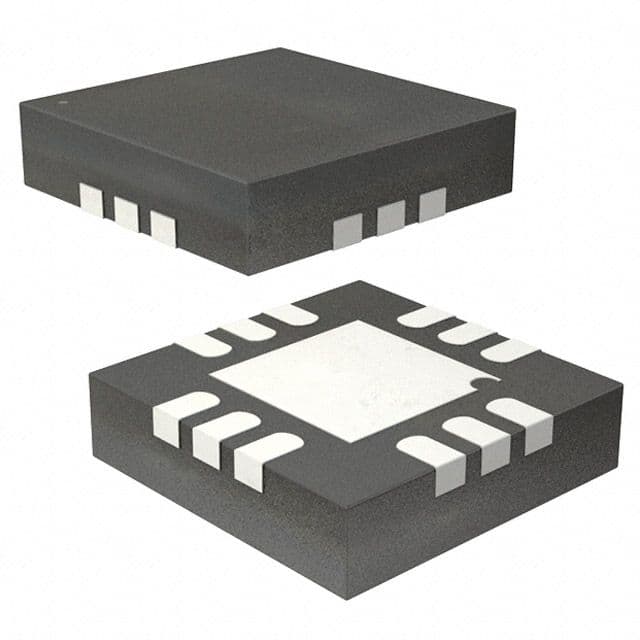

Product Images
