High-speed, full-duplex RS-232 transceiver with 2 drivers and 2 receivers, operating at up to 460Kbps. Features ESD protection and a wide operating temperature range of -40°C to 85°C. This through-hole component is housed in a PDIP package with tin-matte contact plating and supports supply voltages from 3V to 5.5V. RoHS compliant and lead-free.
PackagePDIP
Current3mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Analog Devices ADM3202ANZ technical specifications.
General
Package/Case
PDIP
Contact Plating
Tin, Matte
Data Rate
460Kbps
ESD Protection
Yes
Height
3.3mm
Interface
RS-232
Lead Free
Contains Lead
Length
20.07mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
12mA
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Through Hole
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Current
3mA
Operating Supply Voltage
3.3V
Package Quantity
25
Packaging
Rail/Tube
Reach SVHC Compliant
No
Receiver Hysteresis
400mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
3mA
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM3202ANZ Datasheet
Download the complete datasheet for Analog Devices ADM3202ANZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

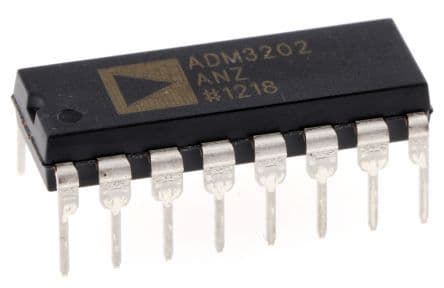

Product Images
