High-speed, +3.3V, 2-channel RS232/V.28 interface device featuring a 460Kbps data rate. This transceiver offers full-duplex communication with two drivers and two receivers. Operating voltage ranges from 3V to 5.5V, with a typical supply current of 2.1mA. The device is packaged in PDIP with Tin, Lead contact plating and supports through-hole mounting. It operates across a temperature range of -40°C to +85°C.
PackagePDIP
Current2.1mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Analog Devices ADM3222AN technical specifications.
General
Package/Case
PDIP
Contact Plating
Tin, Lead
Data Rate
460Kbps
ESD Protection
No
Lead Free
Contains Lead
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
12mA
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Through Hole
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Current
2.1mA
Operating Supply Voltage
3.3V
Package Quantity
20
Packaging
Rail/Tube
Receiver Hysteresis
400mV
RoHS Compliant
No
Simplex/Duplex
Full Duplex
Supply Current
2.1mA
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices ADM3222AN Datasheet
Download the complete datasheet for Analog Devices ADM3222AN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

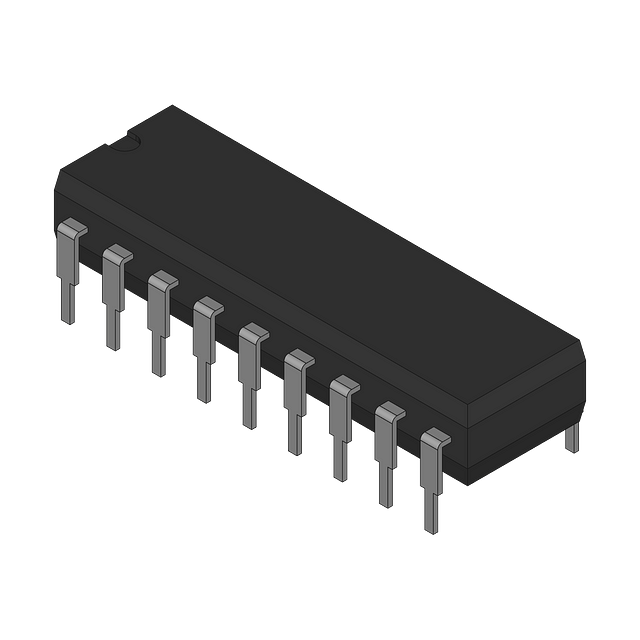

Product Images
