Open-drain microprocessor supervisory circuit in a 4-lead SOT package. Monitors a single voltage with a reset threshold range of 3.02V to 3.14V. Features active-low reset with a 140ms timeout. Operates from 1V to 5.5V supply voltage with a maximum supply current of 15µA. Surface mountable and RoHS compliant.
PackageSOT
Current15uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM6315-31D3ARTZR7 technical specifications.
General
Package/Case
SOT
Lead Free
Contains Lead
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
3.14V
Min Reset Threshold Voltage
3.02V
Max Supply Current
15uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
15uA
Packaging
Tape and Reel
Reach SVHC Compliant
No
Reset
Active Low
Reset Timeout
140ms
RoHS Compliant
Yes
Supply Current
15uA
Threshold Voltage
3.08V
Type
Simple Reset/Power-On Reset
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM6315-31D3ARTZR7 Datasheet
Download the complete datasheet for Analog Devices ADM6315-31D3ARTZR7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

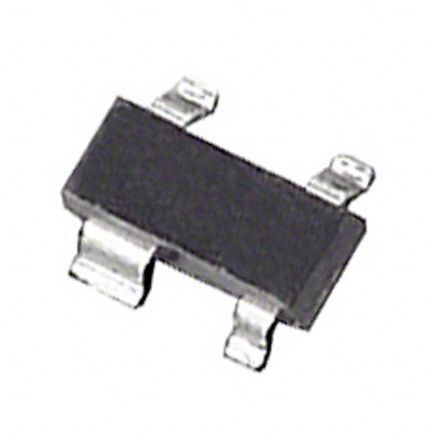

Product Images
