Surface mount supervisory circuit with a 3.08V threshold voltage, monitoring a single voltage input. Features active-low reset with a 1.12s timeout. Operates from 1V to 5.5V supply voltage with a maximum supply current of 15uA. Packaged in a 4-pin SOT-143, suitable for tape and reel packaging. Operating temperature range is -40°C to 125°C.
PackageSOT-143-4
Current15uA
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Analog Devices ADM6315-31D4ARTRL7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Analog Devices ADM6315-31D4ARTRL7 technical specifications.
General
| Package/Case | SOT-143-4 |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 3.14V |
| Min Reset Threshold Voltage | 3.02V |
| Max Supply Current | 15uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Monitored Inputs | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 15uA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reset | Active Low |
| Reset Timeout | 1.12s |
| RoHS Compliant | No |
| Supply Current | 15uA |
| Threshold Voltage | 3.08V |
| Type | Simple Reset/Power-On Reset |
| Watchdog Timer | No |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Analog Devices ADM6315-31D4ARTRL7 Datasheet
Download the complete datasheet for Analog Devices ADM6315-31D4ARTRL7 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

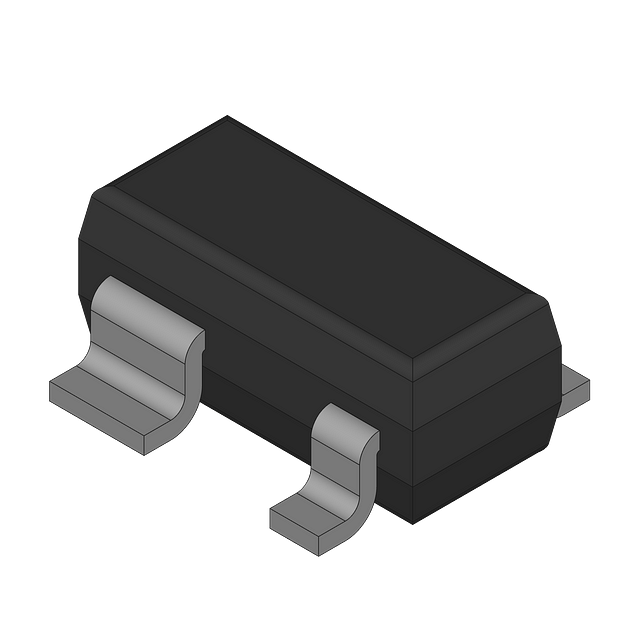

Product Images
