Surface mount supervisory circuit with a 4.39V threshold voltage, monitoring a single voltage from 1V to 5.5V. Features active low reset with a 140ms timeout. Operates within a -40°C to 125°C temperature range, consuming a maximum of 15uA supply current. Packaged in a 4-pin SOT-143 case on tape and reel.
PackageSOT-143-4
Current15uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM6315-44D3ARTRL7 technical specifications.
General
Package/Case
SOT-143-4
Lead Free
Contains Lead
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
4.47V
Min Reset Threshold Voltage
4.31V
Max Supply Current
15uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
15uA
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reset
Active Low
Reset Timeout
140ms
RoHS Compliant
No
Supply Current
15uA
Threshold Voltage
4.39V
Type
Simple Reset/Power-On Reset
Watchdog Timer
No
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices ADM6315-44D3ARTRL7 Datasheet
Download the complete datasheet for Analog Devices ADM6315-44D3ARTRL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

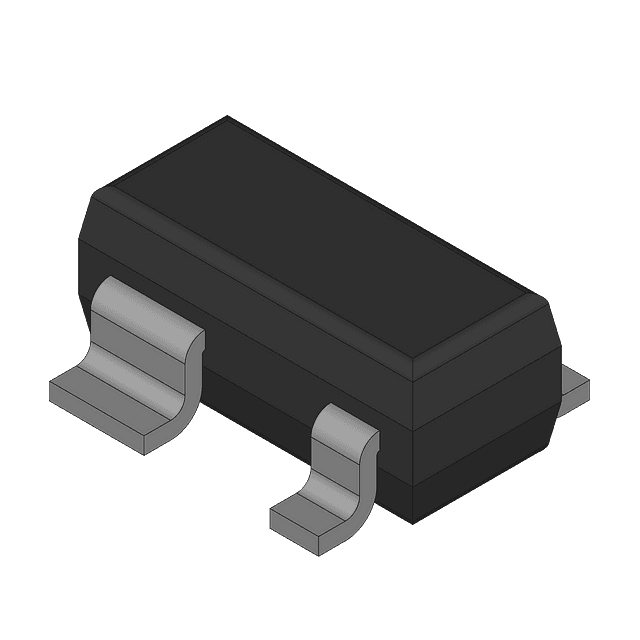

Product Images
