The ADM6315-45D2ARTZR7 is a simple reset/power-on reset IC from Analog Devices, operating within a temperature range of -40°C to 125°C. It has a maximum supply voltage of 5.5V and a minimum supply voltage of 1V, with a supply current of 15uA. The IC is packaged in a SOT package and is RoHS compliant. It features a reset threshold voltage of 4.5V and a reset timeout of 20ms.
PackageSOT
Current15uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM6315-45D2ARTZR7 technical specifications.
General
| Package/Case | SOT |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 4.58V |
| Min Reset Threshold Voltage | 4.42V |
| Max Supply Current | 15uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 15uA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| Reset Timeout | 20ms |
| RoHS Compliant | Yes |
| Supply Current | 15uA |
| Threshold Voltage | 4.5V |
| Type | Simple Reset/Power-On Reset |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADM6315-45D2ARTZR7 Datasheet
Download the complete datasheet for Analog Devices ADM6315-45D2ARTZR7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

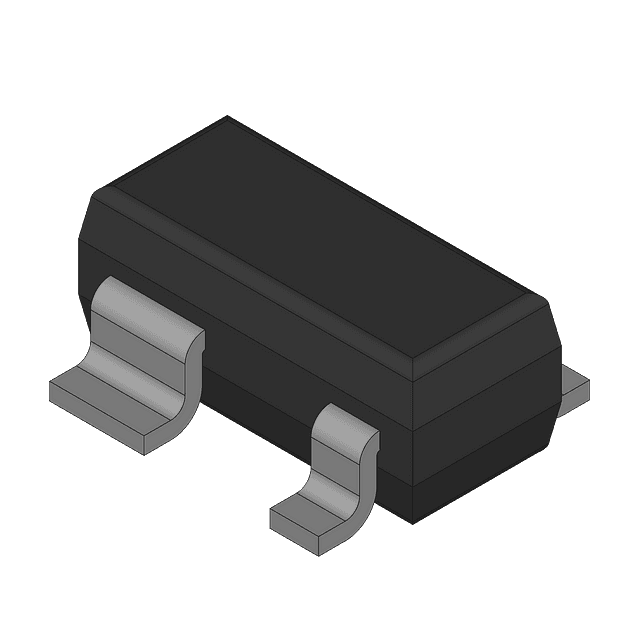

Product Images
