Surface mount microprocessor supervisory circuit with a 4-lead SC package. Features a reset threshold voltage range of 2.26V to 2.37V, with an active-low, totem-pole output. Operates from 1V to 5.5V supply voltage, consuming a maximum of 13uA supply current. Includes a reset delay time of 280ms and a reset timeout of 140ms. Suitable for applications requiring simple reset and power-on reset functionality.
PackageSC
Current13uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM6384YKS23D3Z-R7 technical specifications.
General
Package/Case
SC
Lead Free
Contains Lead
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
2.37V
Min Reset Threshold Voltage
2.26V
Max Supply Current
13uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
13uA
Output
TOTEM-POLE
Overvoltage Threshold
2.37V
Packaging
Tape and Reel
Reach SVHC Compliant
No
Reset
Active Low
Reset Delay Time
280ms
Reset Timeout
140ms
RoHS Compliant
Yes
Supply Current
13uA
Threshold Voltage
2.31V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
2.26V
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM6384YKS23D3Z-R7 Datasheet
Download the complete datasheet for Analog Devices ADM6384YKS23D3Z-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

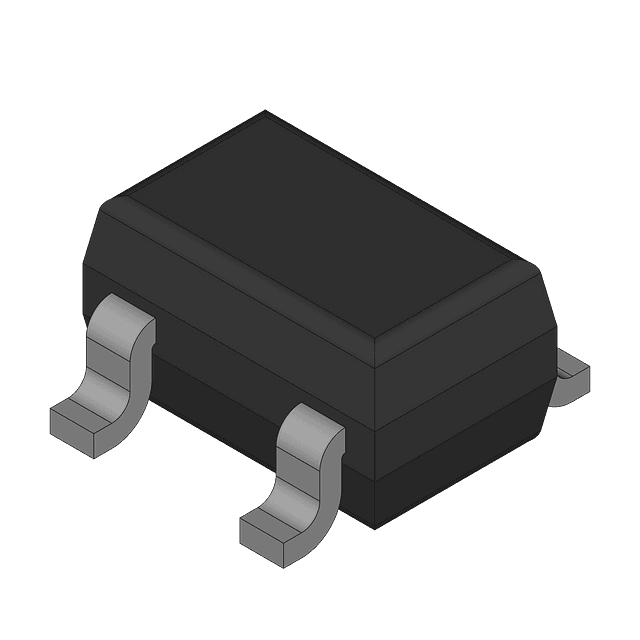

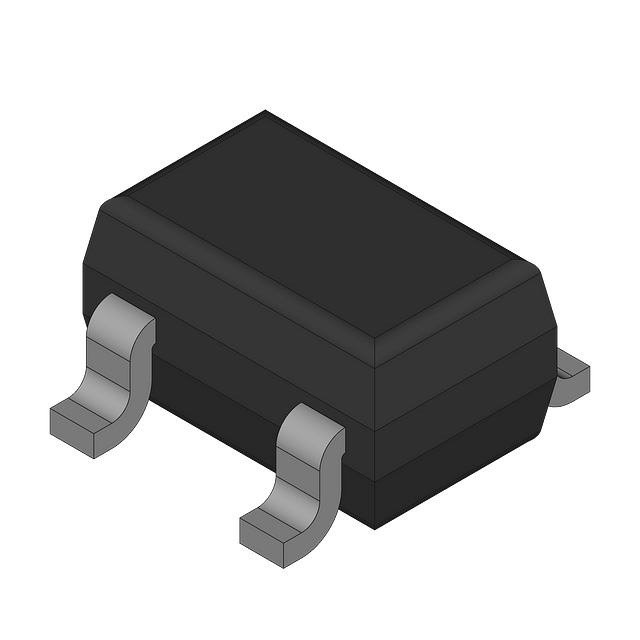

Product Images
