Surface mount microprocessor supervisory circuit with a 4-lead SC package. Features a reset threshold voltage range of 2.85V to 3V, with an overvoltage threshold of 3V and undervoltage threshold of 2.85V. Operates with a supply voltage from 1V to 5.5V and a low supply current of 13uA. Includes active-low reset with a 280ms reset delay time and 140ms reset timeout.
PackageSC
Current13uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM6384YKS29D3Z-R7 technical specifications.
General
Package/Case
SC
Lead Free
Contains Lead
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
3V
Min Reset Threshold Voltage
2.85V
Max Supply Current
13uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
13uA
Output
TOTEM-POLE
Overvoltage Threshold
3V
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active Low
Reset Delay Time
280ms
Reset Timeout
140ms
RoHS Compliant
Yes
Supply Current
13uA
Threshold Voltage
2.93V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
2.85V
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM6384YKS29D3Z-R7 Datasheet
Download the complete datasheet for Analog Devices ADM6384YKS29D3Z-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

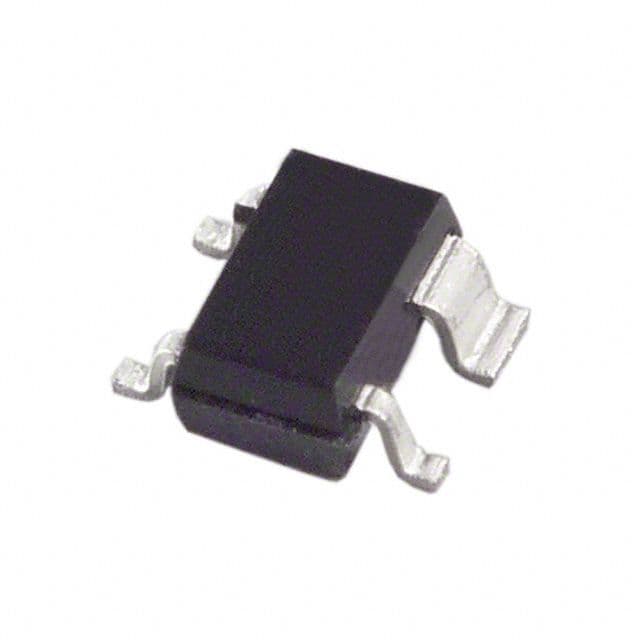

Product Images
