Surface mount microprocessor supervisory circuit featuring a 4.5V reset threshold, with adjustable undervoltage detection from 4.39V and overvoltage detection up to 4.61V. This integrated circuit operates from 1V to 5.5V supply voltage, consuming a maximum of 13uA supply current. It provides an active-low, totem-pole output with a 280ms reset delay and 140ms reset timeout. Designed for general power management applications, it operates across a -40°C to 125°C temperature range.
PackageSC
Current13uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM6384YKS45D3Z-R7 technical specifications.
General
Package/Case
SC
Lead Free
Contains Lead
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
4.61V
Min Reset Threshold Voltage
4.39V
Max Supply Current
13uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
13uA
Output
TOTEM-POLE
Overvoltage Threshold
4.61V
Packaging
Tape and Reel
Reset
Active Low
Reset Delay Time
280ms
Reset Timeout
140ms
RoHS Compliant
Yes
Supply Current
13uA
Threshold Voltage
4.5V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
4.39V
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM6384YKS45D3Z-R7 Datasheet
Download the complete datasheet for Analog Devices ADM6384YKS45D3Z-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

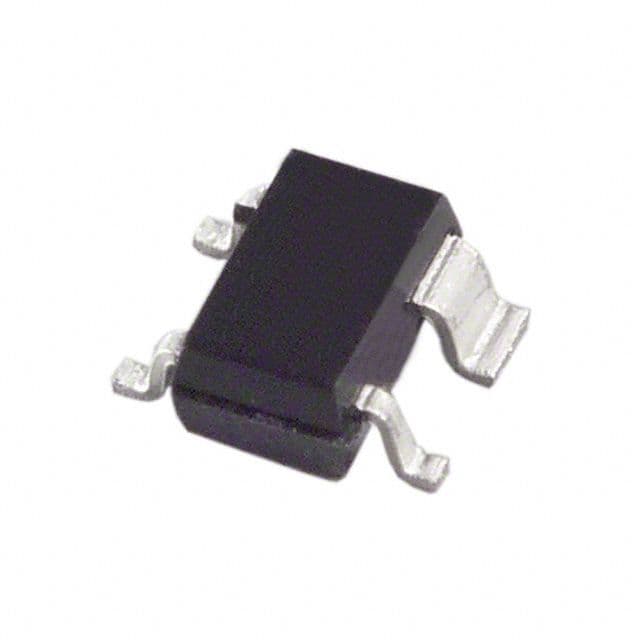

Product Images
