Surface mount supervisory circuit IC with a single channel, monitoring one voltage with a threshold of 4.63V. Features a push-pull, totem-pole output and active-low reset with a 640ms delay and 140ms timeout. Operates from 1V to 5.5V supply voltage, consuming a maximum of 60uA. Suitable for applications requiring simple reset and power-on reset functionality, with an operating temperature range of -40°C to 125°C.
PackageSC
Current60uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM6711LAKSZ-REEL technical specifications.
General
Package/Case
SC
Lead Free
Contains Lead
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
4.7V
Min Reset Threshold Voltage
4.56V
Max Supply Current
60uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
35uA
Output
TOTEM-POLE
Output Type
PUSH-PULL
Overvoltage Threshold
4.7V
Packaging
Tape and Reel
Radiation Hardening
No
Reset
Active Low
Reset Delay Time
640ms
Reset Timeout
140ms
RoHS Compliant
Yes
Supply Current
60uA
Threshold Voltage
4.63V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
4.56V
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM6711LAKSZ-REEL Datasheet
Download the complete datasheet for Analog Devices ADM6711LAKSZ-REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

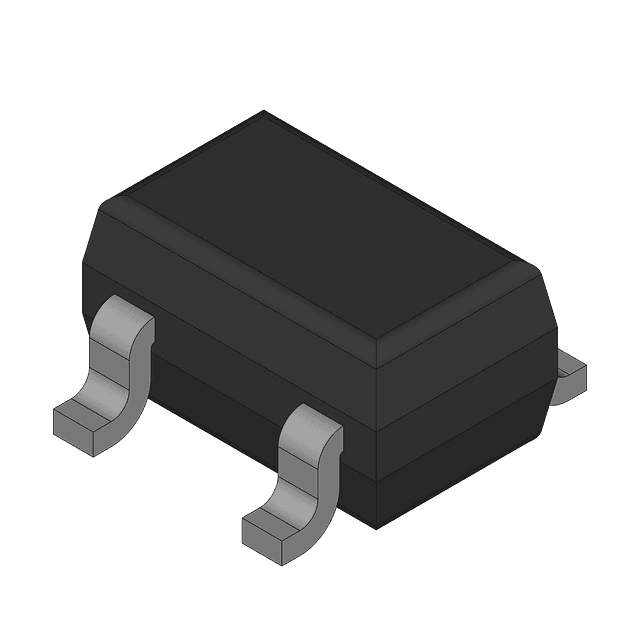

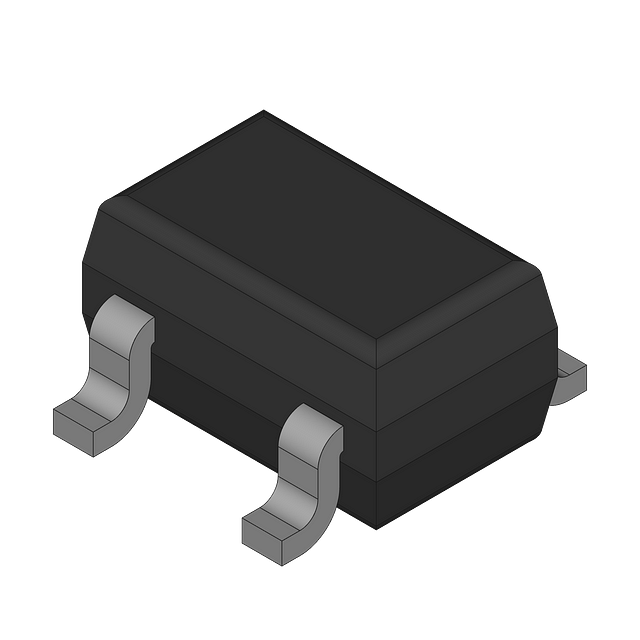

Product Images
