Microprocessor supervisory circuit featuring a single monitored voltage with a threshold range of 2.28V to 2.35V. This surface mount component operates from 1V to 5.5V with a typical supply current of 35uA, maxing out at 60uA. It provides an active-low, push-pull output with a reset delay of 640ms and a reset timeout of 140ms. Designed for general power management, this RoHS compliant integrated circuit is packaged in a 4-lead SC70 for tape and reel distribution.
PackageSC
Current60uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM6711ZAKSZ-REEL7 technical specifications.
General
Package/Case
SC
Lead Free
Contains Lead
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
2.35V
Min Reset Threshold Voltage
2.28V
Max Supply Current
60uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
35uA
Output
TOTEM-POLE
Output Type
PUSH-PULL
Overvoltage Threshold
2.35V
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
Reset
Active Low
Reset Delay Time
640ms
Reset Timeout
140ms
RoHS Compliant
Yes
Supply Current
60uA
Threshold Voltage
2.32V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
2.28V
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM6711ZAKSZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADM6711ZAKSZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

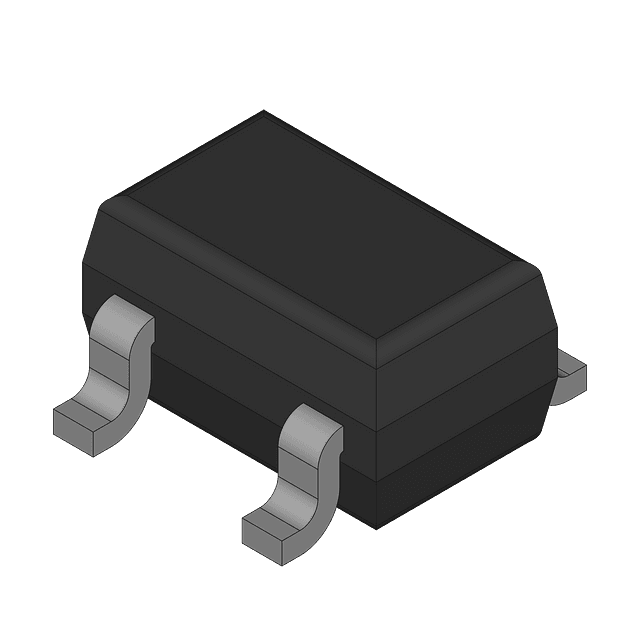

Product Images
