Surface mount microprocessor supervisory circuit with a 4-lead SC-70 package. Features a reset threshold voltage range of 4.56V to 4.7V, with an active-low reset output and a reset delay time of 640ms. Operates from a 1V to 5.5V supply voltage, consuming a maximum of 60uA supply current. Designed for general power management applications, it monitors a single voltage with a reset timeout of 140ms.
PackageSC
Current60uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM6713LAKSZ-REEL7 technical specifications.
General
| Package/Case | SC |
| Height | 1mm |
| Lead Free | Contains Lead |
| Length | 2.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 4.7V |
| Min Reset Threshold Voltage | 4.56V |
| Max Supply Current | 60uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Monitored Inputs | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 35uA |
| Overvoltage Threshold | 4.7V |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| Reset Delay Time | 640ms |
| Reset Timeout | 140ms |
| RoHS Compliant | Yes |
| Supply Current | 60uA |
| Threshold Voltage | 4.63V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 4.56V |
| Watchdog Timer | No |
| Width | 1.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADM6713LAKSZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADM6713LAKSZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

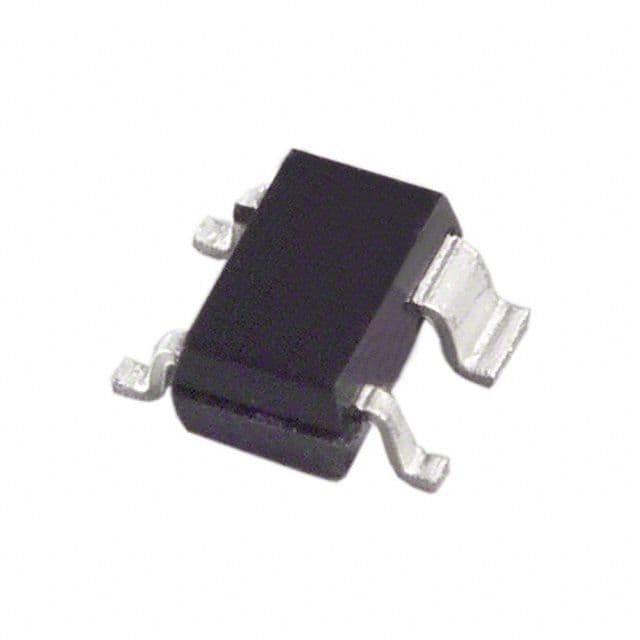

Product Images
