Surface mount microprocessor supervisory circuit with active-low reset. Features a 2.63V threshold voltage, 2.59V undervoltage threshold, and 2.66V overvoltage threshold. Operates with a 1V to 5.5V supply voltage and consumes 35uA typical supply current. Includes a 140ms reset timeout and 640ms reset delay time. Packaged in a 4-lead SC70 (1mm height, 2.2mm length, 1.35mm width) on tape and reel.
PackageSC
Current60uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM6713RAKSZ-REEL7 technical specifications.
General
Package/Case
SC
Height
1mm
Lead Free
Contains Lead
Length
2.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
2.66V
Min Reset Threshold Voltage
2.59V
Max Supply Current
60uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
35uA
Overvoltage Threshold
2.66V
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active Low
Reset Delay Time
640ms
Reset Timeout
140ms
RoHS Compliant
Yes
Supply Current
60uA
Threshold Voltage
2.63V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
2.59V
Watchdog Timer
No
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM6713RAKSZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADM6713RAKSZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

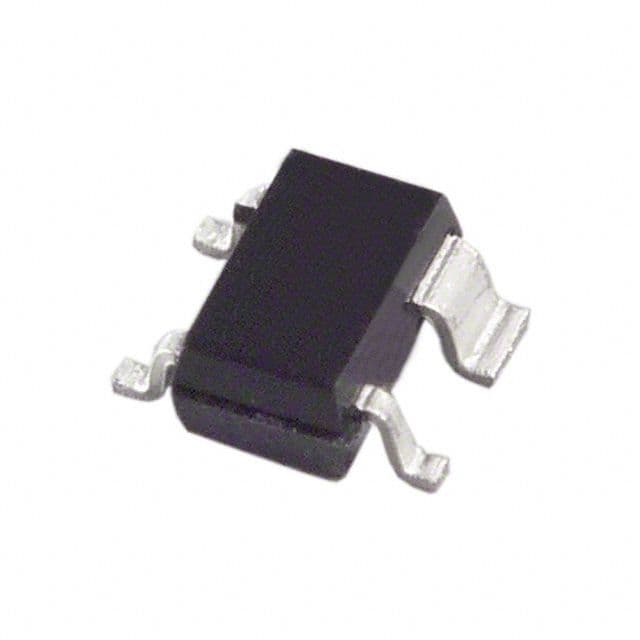

Product Images
