Single-channel power supply monitoring IC with active-low reset. Features a reset threshold voltage range of 2.28V to 2.35V, supporting supply voltages from 1V to 5.5V. Operates with a maximum supply current of 60µA and includes a 640ms reset delay and 140ms reset timeout. Packaged in a 4-pin SC (SC-70/EIAJ SC82) surface-mount configuration, suitable for operation between -40°C and 125°C.
PackageSC
Current60uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM6713ZAKS-REEL technical specifications.
General
Package/Case
SC
Lead Free
Contains Lead
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
2.35V
Min Reset Threshold Voltage
2.28V
Max Supply Current
60uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
35uA
Overvoltage Threshold
2.35V
Packaging
Tape and Reel
Radiation Hardening
No
Reset
Active Low
Reset Delay Time
640ms
Reset Timeout
140ms
RoHS Compliant
No
Supply Current
60uA
Threshold Voltage
2.32V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
2.28V
Watchdog Timer
No
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices ADM6713ZAKS-REEL Datasheet
Download the complete datasheet for Analog Devices ADM6713ZAKS-REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

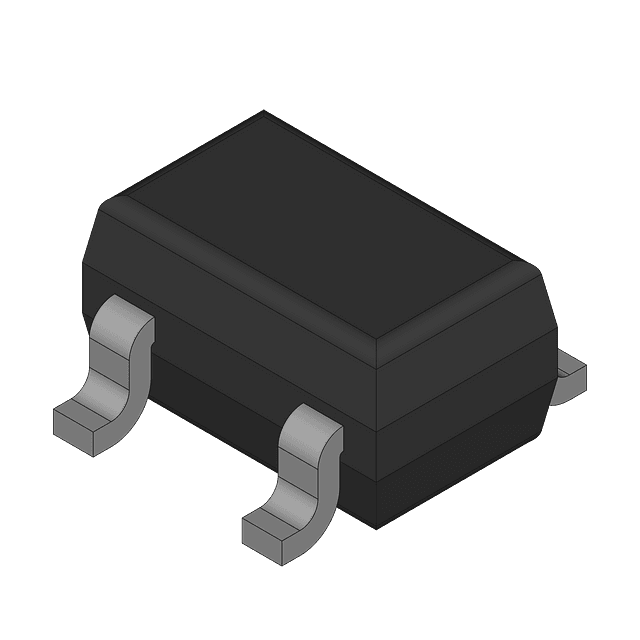

Product Images
