Microprocessor supervisor IC featuring battery backup switchover, watchdog timer, and power fail warning. Monitors a single voltage with a threshold of 4.65V, offering active low reset with a 280ms delay and 140ms timeout. Operates from 1V to 5.5V with a maximum supply current of 100uA. Housed in an MSOP package for surface mounting, with a maximum power dissipation of 500mW and an operating temperature range of -40°C to 85°C.
PackageMSOP
Current100uA
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Analog Devices ADM690AARM technical specifications.
General
Package/Case
MSOP
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
500mW
Max Reset Threshold Voltage
4.75V
Min Reset Threshold Voltage
4.5V
Max Supply Current
100uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
100uA
Output
TOTEM-POLE
Overvoltage Threshold
4.75V
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
500mW
Reset
Active Low
Reset Delay Time
280ms
Reset Timeout
140ms
RoHS Compliant
No
Supply Current
100uA
Threshold Voltage
4.65V
Type
Battery Backup Circuit
Undervoltage Threshold
4.5V
Watchdog Timer
Yes
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices ADM690AARM Datasheet
Download the complete datasheet for Analog Devices ADM690AARM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

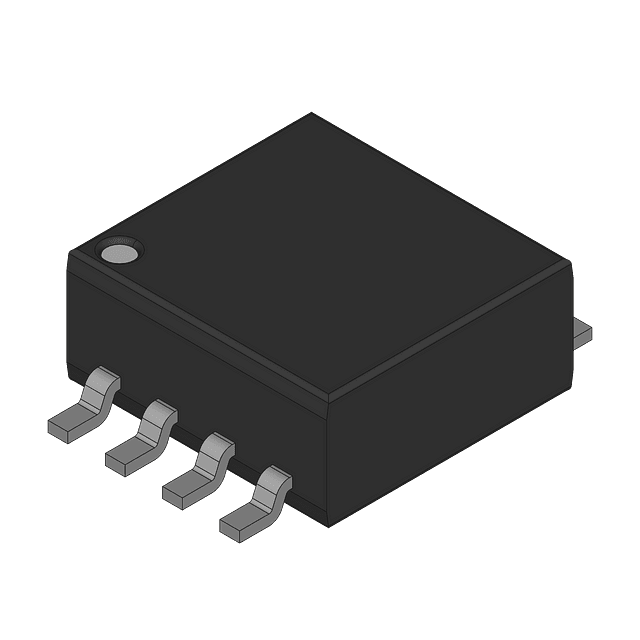

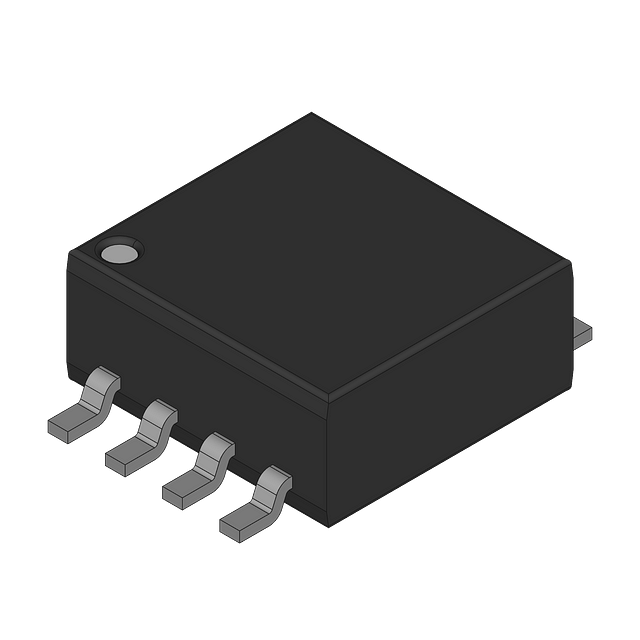

Product Images
