Surface mount microprocessor supervisory circuit with a 3V threshold, featuring active high/low reset and a 280ms reset delay. This integrated circuit operates from 1V to 5.5V, with a maximum supply current of 250µA and a power dissipation of 900mW. It monitors a single voltage input and provides one output, suitable for applications requiring voltage monitoring and reset functionality. The component is packaged in an MSOP case, with dimensions of 1.1mm height, and is supplied on tape and reel.
PackageMSOP
Current250uA
MountingSurface Mount
Power900mW
Quick Jump:
Technical Specifications
Analog Devices ADM708ARMZ-REEL technical specifications.
General
| Package/Case | MSOP |
| Height | 1.1mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 900mW |
| Max Reset Threshold Voltage | 4.5V |
| Min Reset Threshold Voltage | 4.25V |
| Max Supply Current | 250uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Monitored Inputs | 1 |
| Number of Outputs | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 250uA |
| Output Current | 20mA |
| Overvoltage Threshold | 4.5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 900mW |
| Radiation Hardening | No |
| Reset | Active High/Active Low |
| Reset Delay Time | 280ms |
| Reset Timeout | 160ms |
| RoHS Compliant | Yes |
| Supply Current | 250uA |
| Threshold Voltage | 4.4V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 4.25V |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADM708ARMZ-REEL Datasheet
Download the complete datasheet for Analog Devices ADM708ARMZ-REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

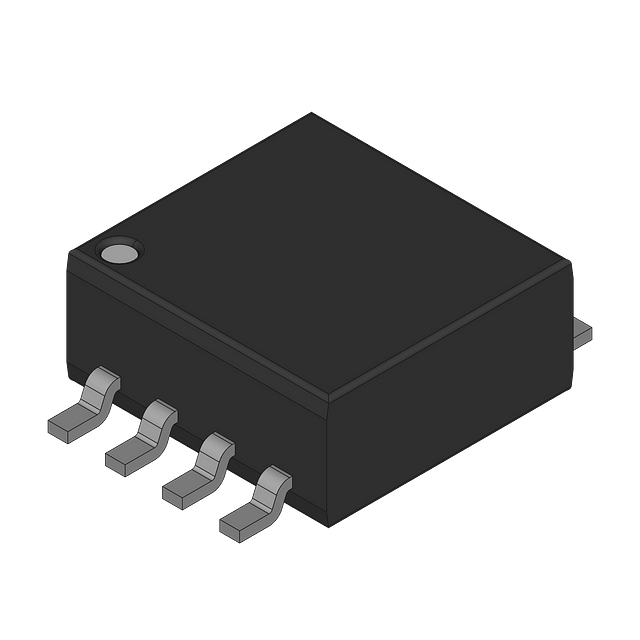

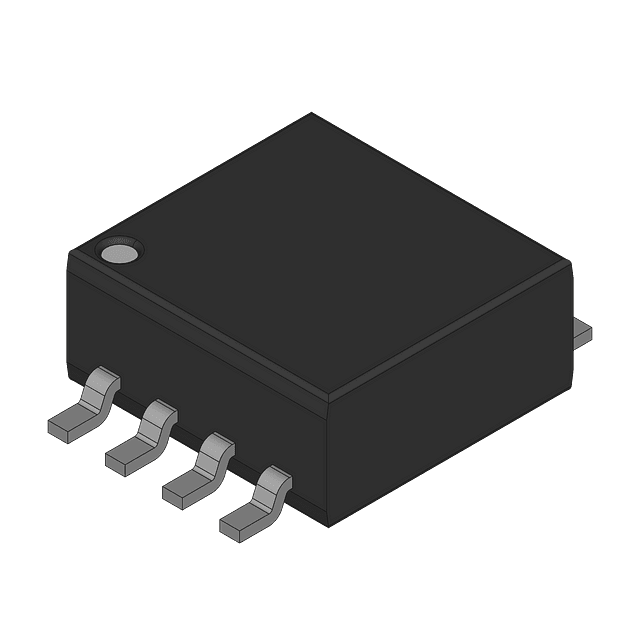

Product Images
