Analog Devices
ADM803SAKS-REEL7
Microprocessor Supervisory Circuit in 3-Lead SC70, Active-Low Open-Drain Output
PackageSC
Current60uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM803SAKS-REEL7 technical specifications.
General
Package/Case
SC
Lead Free
Contains Lead
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
2.96V
Min Reset Threshold Voltage
2.89V
Max Supply Current
60uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
35uA
Package Quantity
1
Packaging
Tape and Reel
Reset
Active Low
Reset Timeout
140ms
RoHS Compliant
No
Supply Current
60uA
Threshold Voltage
2.93V
Type
Simple Reset/Power-On Reset
Watchdog Timer
No
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices ADM803SAKS-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADM803SAKS-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

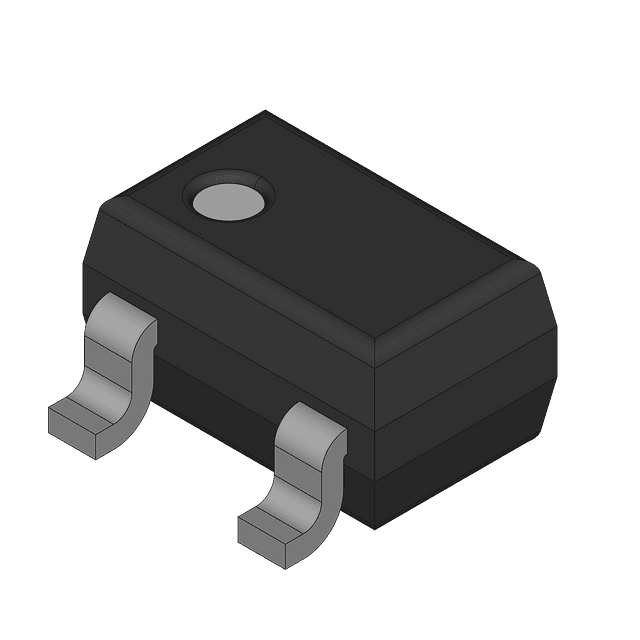

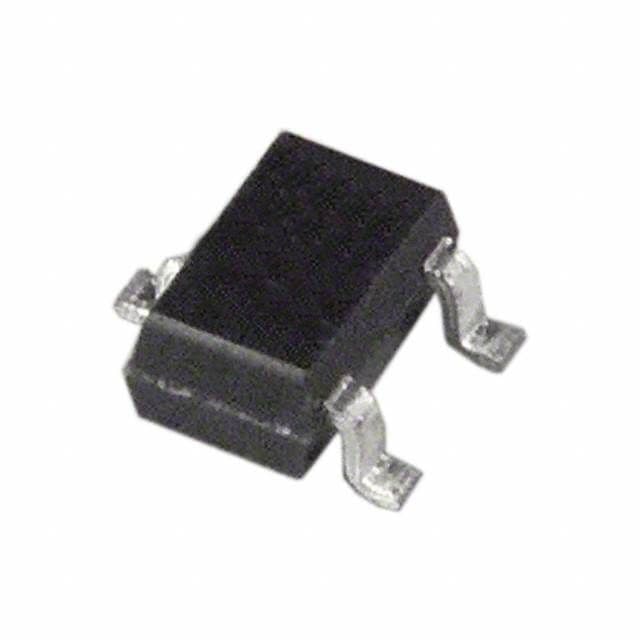

Product Images
