Surface mount microprocessor supervisory circuit featuring an active-high push-pull output. Monitors a single voltage with a reset threshold range of 4.56V to 4.7V. Operates from 1V to 5.5V supply voltage with a maximum supply current of 60µA. Offers a reset delay time of 840ms and a reset timeout of 140ms. Available in SC package, measuring 1mm height, 2mm length, and 1.25mm width, supplied in tape and reel packaging.
PackageSC
Current60uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM810LAKSZ-REEL7 technical specifications.
General
Package/Case
SC
Height
1mm
Lead Free
Contains Lead
Length
2mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
4.7V
Min Reset Threshold Voltage
4.56V
Max Supply Current
60uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
60uA
Output
TOTEM-POLE
Output Type
PUSH-PULL
Overvoltage Threshold
4.7V
Package Quantity
3000
Packaging
Tape and Reel
Reset
Active High
Reset Delay Time
840ms
Reset Timeout
140ms
RoHS Compliant
Yes
Supply Current
60uA
Threshold Voltage
4.63V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
4.56V
Watchdog Timer
No
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM810LAKSZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADM810LAKSZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

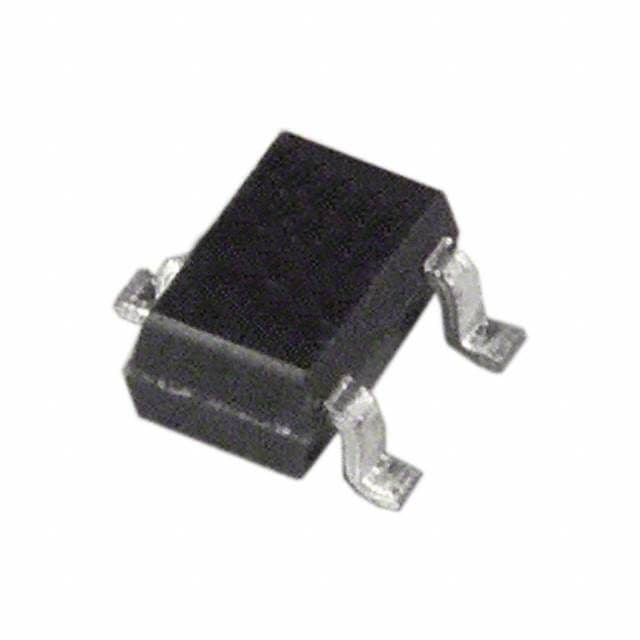

Product Images
